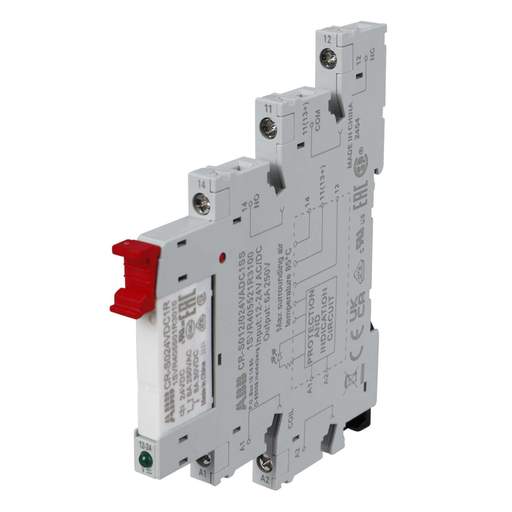

ABB CR-S012/024VADC1SS 12-24V AC/DC, 250V AC DIN Rail Mount Relay Socket
Part Code: 1SVR405521R3100
Stock Code: 2830-9174
ABB CR-S012/024VADC1SS 12-24V AC/DC, 250V AC DIN Rail Mount Relay Socket
Part Code: 1SVR405521R3100
Stock Code: 2830-9174
Features
- Suitable for CR-S range 12 - 24V AC/DC, 250V AC interface relays
- DIN rail mount socket
- IP20 touch-proof terminals
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- Grey
- Compliance
- CE
- Current Rating
- 6A
- Depth
- 88.5mm
- Dimensions
- (H)76.4 mm x (W)7 mm x (D)88.5 mm
- Guarantee
- 1 Year
- Height
- 76.4mm
- IP Rating
- IP20
- Maximum Operating Temperature
- 70°C
- Minimum Operating Temperature
- -40°C
- Mounting
- DIN Rail
- Number of Pins
- 5
- Packaging Types
- Each
- Pole Amperage
- 6A
- Product Range
- CR-S Range
- Standards
- CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 61984, UL 508
- Suitable For
- CR-S Range 12 - 24V AC/DC, 250V AC Interface Relays
- Terminal Type
- Screw
- Unspsc V18
- 39122335
- Unspsc V24
- 39122335
- Voltage Rating
- 250V
- Weight
- 0.026kg
- Width
- 7mm
