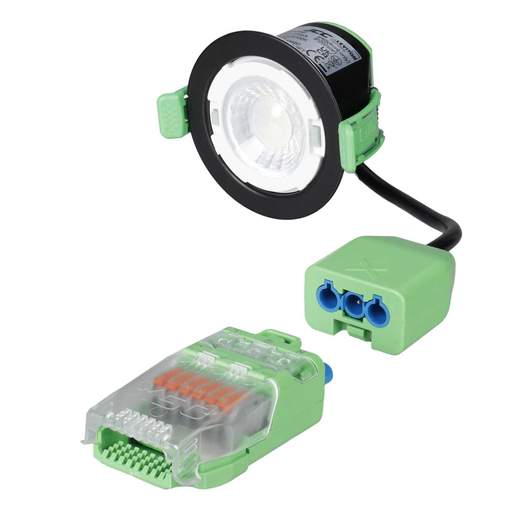

JCC X50 3W / 5W Fire Rated Tri-Colour Dimmable Downlight (No Bezel)
Part Code: JC1101/NB
Stock Code: 2830-9543
JCC X50 3W / 5W Fire Rated Tri-Colour Dimmable Downlight (No Bezel)
Part Code: JC1101/NB
Stock Code: 2830-9543
Features
- Wattage selectable [3W / 5W] and colour selectable [3000K / 4000K / 5700K] from beneath the bezel
- Two-part first fix connector with dedicated testing terminals
- Double hinged terminal for easy access to terminal blocks
- Tested for use in solid, I-joist and steel open web joist ceilings

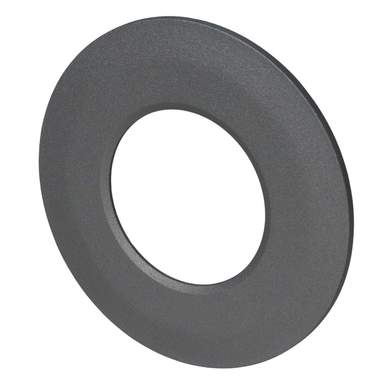

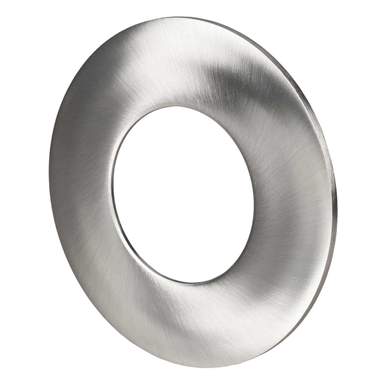

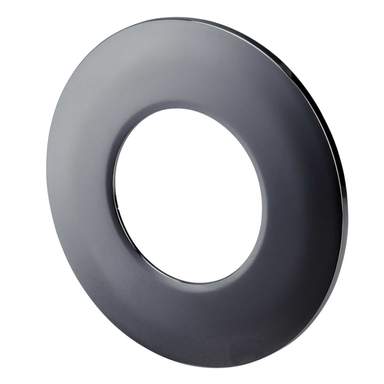

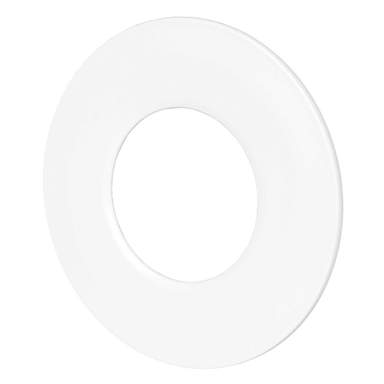

- Requires X50 bezel [sold separately]
- Register with JCC within 1 year of purchase to extend warranty / guarantee from 2 years to 5 years
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Beam Angle
- 60°
- Class Type
- Class 1
- Colour Rendering Index(Cri)
- 80
- Colour Temperature
- Selectable - 3000/4000/5700 K
- Compliance
- UKCA, CE
- Cut Out Range
- 68 - 70mm
- Depth
- 55.4mm
- Diameter
- 84mm
- Dimensions
- (Dia)84 mm x (D)55.4 mm
- Dimmable
- Yes
- Efficacy Rating
- 140
- Energy Saving
- Yes
- Fire Rated
- Yes
- Guarantee
- 2 Years
- IP Rating
- IP65
- Lamp Life
- 51000h
- Lamp Type
- Integrated LED
- Light Source Energy Rating
- A
- Lumens Output
- 480lm 700lm
- Mounting
- Recessed
- Packaging Types
- Each
- Power Rating
- 3W 5W
- Product Range
- X50
- Standards
- BS EN 60598
- Unspsc V18
- 39111515
- Unspsc V24
- 39111515
- Video Url
- https://www.youtube.com/embed/s_dOfHP7xYg
- Voltage Rating
- 230V
- Weight
- 0.245kg
