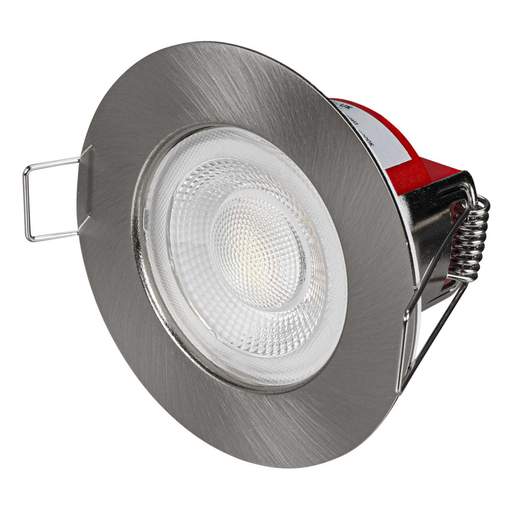

Xcite FRD Mini 6W LED CCT Dimmable Fire Rated Downlight Satin Nickel
Part Code: XCFRA6CTSN
Stock Code: 2832-0874
Xcite FRD Mini 6W LED CCT Dimmable Fire Rated Downlight Satin Nickel
Part Code: XCFRA6CTSN
Stock Code: 2832-0874
Features
- Ultra-low profile compact design, perfect for shallow ceiling voids
- CCT selectable [3000K / 4000K / 6000K] adjustable via simple 3-way selector switch
- Dimmable as standard
- 30 minute fire rating with Staircraft I-Joist and METAL WEB Joist
- 30, 60 and 90 minute fire rating with solid timber joists
- Loop in/out mains connections with easy-fit connector
- IP65 rated [suitable for showers and wet rooms]
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Beam Angle
- 60°
- Class Type
- Class 2
- Colour
- Satin Nickel
- Colour Rendering Index(Cri)
- 80
- Colour Temperature
- Selectable - 3000/4000/6500 K
- Compliance
- UKCA, CE
- Cut Out
- 60mm
- Depth
- 44mm
- Diameter
- 80mm
- Dimensions
- (Dia)80 mm x (D)44 mm
- Dimmable
- Yes
- Efficacy Rating
- 108
- Energy Saving
- Yes
- Finish
- Satin Nickel
- Fire Rated
- Yes
- Guarantee
- 3 Years
- IP Rating
- IP65
- Ik Rating
- IK03
- Lamp Life
- 30000h
- Lamp Type
- Integrated LED
- Lumen Range
- 550 - 650 lm
- Lumens Output
- 550lm 575lm 650lm
- Mounting
- Recessed
- Packaging Types
- Each
- Power Rating
- 6W
- Product Range
- xcite FRD Mini
- Standards
- BS EN 60598
- Unspsc V18
- 39111515
- Unspsc V24
- 39111515
- Voltage Rating
- 230V
- Weight
- 0.19860kg
