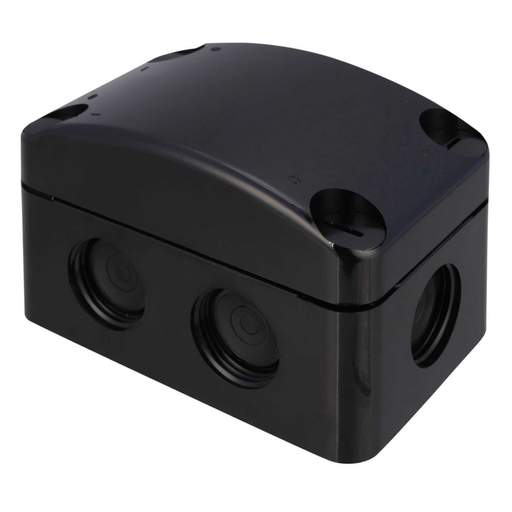

Unicrimp Q-NECT 85mm x 55mm x 52mm Weatherproof Enclosure with Connectors Black IP66
Part Code: QOE5553BLKF
Stock Code: 2832-6778
Unicrimp Q-NECT 85mm x 55mm x 52mm Weatherproof Enclosure with Connectors Black IP66
Part Code: QOE5553BLKF
Stock Code: 2832-6778
Features
- Supplied with 4 x 3 port lever connectors
- 6 Membrane entries
- Threaded gland entries
- Quarter turn cover screws
- Rear membrane entries
- IP66 Rated
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- Black
- Current Rating
- 32A
- Depth
- 52mm
- Dimensions
- (L)55 mm x (W)85 mm x (D)52 mm
- Finish
- Black
- Guarantee
- 1 Year
- IP Rating
- IP66
- Length
- 55mm
- Material
- Polycarbonate
- Maximum Operating Temperature
- 85°C
- Minimum Operating Temperature
- -30°C
- Mounting
- Surface
- Number of Knockouts
- 6
- Packaging Types
- Each
- Product Range
- Q-NECT
- Standards
- BS 6220, BS EN 60670, BS EN 60529:1992 A2:2013, BS EN 60998-1: 2004, BS EN 60998-2-2:2004
- Supplied With
- 4 x 3 Port Lever Connectors
- Unspsc V18
- 39121324
- Unspsc V24
- 39121324
- Width
- 85mm
