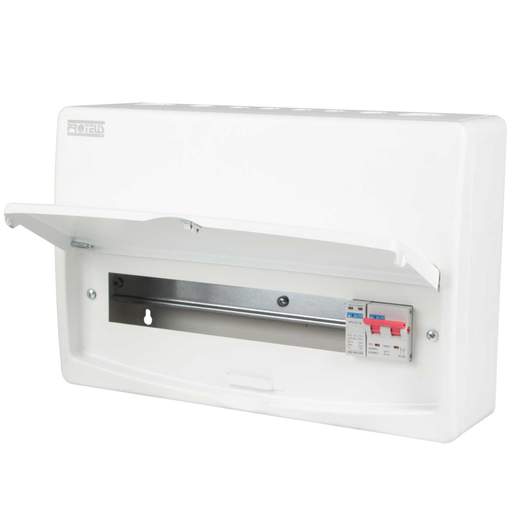

Proteus 13 Way 100A Isolator Incomer Metal Clad Consumer Unit with Type 2 SPD
Part Code: PMX13T2S
Stock Code: 2833-8301
Proteus 13 Way 100A Isolator Incomer Metal Clad Consumer Unit with Type 2 SPD
Part Code: PMX13T2S
Stock Code: 2833-8301
Features
- Patented dual screw isolator
- Numbered and coloured Earth & Neutral Bar
- Cable Entry Plate - to protect rear entry cables
- Built-in Spirit Level
- Accepts 6kA & 10kA MCBs and RCBOs
- Surge Protection Device [SPD] fitted
- Non-combustible enclosure
- Matt white RAL 9016 finish
- Flush fitting door and curved cover
- Removable door via spring loaded hinge
- Includes 1 x blank
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Proteus
- Cable Entry
- Selection of Knockouts
- Current Rating
- 100A
- Depth
- 113mm
- Dimensions
- (H)260 mm x (W)392 mm x (D)113 mm
- Door Type
- Hinged Flush
- Guarantee
- 10 Years
- Height
- 260mm
- IP Rating
- IP4XC
- Incoming Device
- 100A DP Dual Screw Isolator
- Incoming Terminal Capacity
- 35mm²
- Material
- Steel
- Mounting
- Surface
- Number of Modules
- 16
- Number of Outgoing Ways
- 13
- Packaging Types
- Each
- Product Range
- Isolator Incomer Units
- Standards
- BS EN 61439 1&3
- Supplied With
- 100A Isolator, 1 x Cable Entry Plate & Type 2 SPD
- Surge Protection Fitted
- Yes
- Unspsc V18
- 39121110
- Unspsc V24
- 39121110
- Voltage Rating
- 230V
- Weight
- 4.76000kg
- Width
- 392mm
