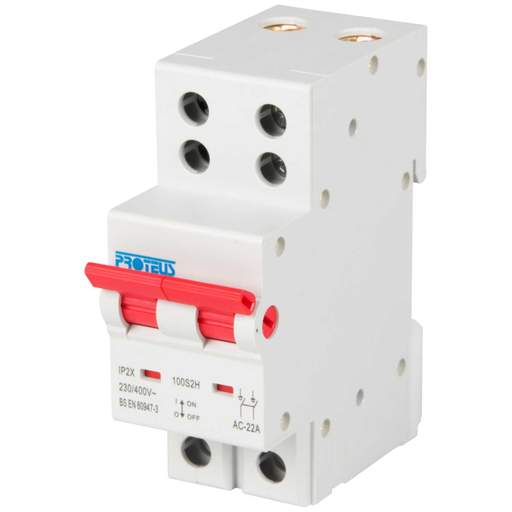

Proteus 100A DP Switch Disconnector Isolator
Part Code: 100S2H
Stock Code: 2833-8349
Proteus 100A DP Switch Disconnector Isolator
Part Code: 100S2H
Stock Code: 2833-8349
Features
- Dual screw terminals specifically developed for incoming supply cables
- Patented design enhancing installation safety
- Extended terminal length for greater connectivity
- The circular cross section tunnel matches that of the conductor cable
- Accepts up to 35mm² meter tails
- IP20 rated
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Proteus
- Current Rating
- 100A
- Depth
- 77mm
- Dimensions
- (H)90 mm x (W)36 mm x (D)77 mm
- Guarantee
- 10 Years
- Height
- 90mm
- IP Rating
- IP2X
- Incoming Terminal Capacity
- 35 mm²
- Material
- PBT
- Mounting
- DIN Rail
- Number of Modules
- 2
- Number of Poles
- Double Pole
- Outgoing Terminal Capacity
- 35 mm²
- Packaging Types
- Each
- Product Range
- Isolators
- Standards
- BS EN 60947-3
- Type
- Isolator
- Unspsc V18
- 39122233
- Unspsc V24
- 39122233
- Voltage Rating
- 230V 400V
- Weight
- 0.25700kg
- Width
- 36mm
