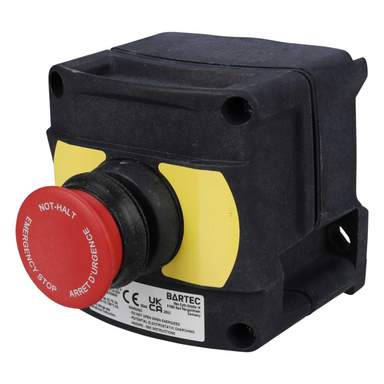

Bartec ComEx Emergency Stop Ex GRP Control Station with Locking Shroud
Part Code: 476334
Stock Code: 2834-0218
Bartec ComEx Emergency Stop Ex GRP Control Station with Locking Shroud
Part Code: 476334
Stock Code: 2834-0218
Features
- 1 x Emergency stop mushroom button red pull-to-release, with labelling and shroud, 1 NO + 1 NC
- Installation in Zone 1 and Zone 21
- Thermoplastic enclosure
- Degree of protection IP67 according to EN 60529
- 1 x M20 entry, bottom face only
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Atex Classificatio
- II 2G Ex db eb IIC T6 Gb, Ex II 2G Ex db eb ia IIC T6 Gb, Ex II 2D Ex tb IIIC T80°C Db
- Cable Entry
- 1 x M20
- Certification Code
- CML 21ATEX31165X, CML 22UKEX3259X
- Contact Configuration
- 1 NO + 1 NC
- Current Rating
- 16A
- Depth
- 78.4mm
- Dimensions
- (H)90.9 mm x (W)89 mm x (D)78.4 mm
- Guarantee
- 1 Year
- Height
- 90.9mm
- IP Rating
- IP67
- Material
- GRP Glass Reinforced Plastic
- Packaging Types
- Each
- Previously Known As
- 07-3521-10N64000000301
- Unspsc V18
- 39122214
- Unspsc V24
- 39122214
- Voltage Rating
- 690V
- Weight
- 0.55000kg
- Width
- 89mm
- Zone Rating
- Zone 1 Zone 21
