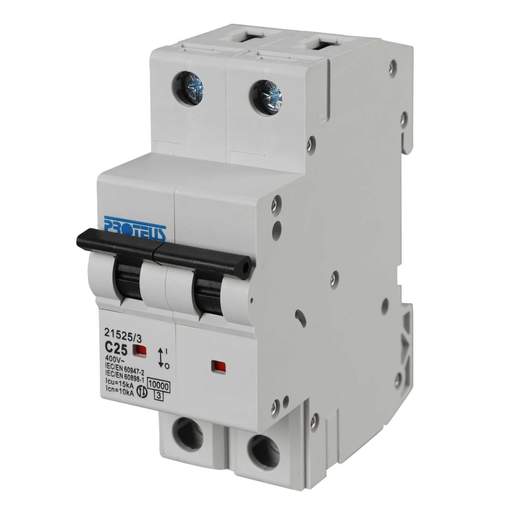

Proteus 25A Double Pole 15kA C Curve MCB
Part Code: 21525/3
Stock Code: 2834-5438
Proteus 25A Double Pole 15kA C Curve MCB
Part Code: 21525/3
Stock Code: 2834-5438
Features
- Suitable for ABX, BX, XL and PX boards
- Thermal-Magnetic operation
- Current limiting C Curve operating characteristics
- SP, DP, TP available
- Mechanical Flag Indicator shows ON or OFF
- Operating dolly may be locked in either the ON or OFF position
- Contacts are manufactured from carefully chosen materials
- Selected for their low electrical resistance and low propensity to weld under fault conditions
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Proteus
- Current Rating
- 25A
- Depth
- 75mm
- Dimensions
- (H)85 mm x (W)35 mm x (D)75 mm
- Guarantee
- 1 Year
- Height
- 85mm
- Incoming Terminal Capacity
- 25mm²
- Material
- Flame Retardant PA
- Mounting
- DIN Rail
- Number of Modules
- 2
- Number of Poles
- Double Pole
- Packaging Types
- Each
- Short Circuit Rating
- 15kA
- Standards
- BS EN 60898, DIN VDE 0641 pt11, IEC 898
- Tripping Characteristics
- C Curve
- Unspsc V18
- 39121603
- Unspsc V24
- 39121603
- Voltage Rating
- 230V
- Weight
- 0.26880kg
- Width
- 35mm
