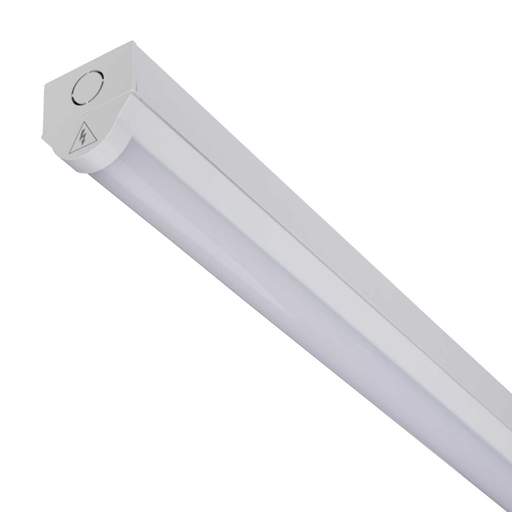

Xcite X1 31W - 54W 5ft LED CCT Emergency Steel Batten Fitting
Part Code: XCBT5X1M3
Stock Code: 2834-6629
Xcite X1 31W - 54W 5ft LED CCT Emergency Steel Batten Fitting
Part Code: XCBT5X1M3
Stock Code: 2834-6629
Features
- Wattage adjustable [31W / 39W / 46W / 54W] via 2-way dip switch
- CCT [3000K / 4000K / 6000K] adjustable via simple 3-way selector switch
- 3 hours maintained emergency
- Emergency lumen output: 293 lm
- High quality opal diffuser to reduce glare
- Loop in/out mains connector
- Steel body in white finish
- BESA fixings for rear or end cable entry
- Suitable for general domestic and commercial use
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Class Type
- Class 1
- Colour
- White
- Colour Rendering Index(Cri)
- 85
- Colour Temperature
- Selectable - 3000/4000/6000 K
- Compliance
- UKCA, CE
- Depth
- 58mm
- Dimensions
- (L)1500 mm x (W)55 mm x (D)58 mm
- Dimmable
- No
- Efficacy Rating
- 146
- Emergency
- Yes
- Emergency Duration
- 3 Hours
- Emergency Type
- Maintained
- Energy Saving
- Yes
- Finish
- White
- Guarantee
- 5 Years
- IP Rating
- IP20
- Ik Rating
- IK06
- Lamp Life
- 30000h
- Lamp Type
- Integrated LED
- Length
- 1500mm
- Lens Colour
- Opal
- Lumen Range
- 4200 - 7600 lm
- Lumens Output
- 4200lm 7600lm
- Material
- Polycarbonate / Steel
- Maximum Operating Temperature
- 25°C
- Minimum Operating Temperature
- 0°C
- Mounting
- Surface
- Packaging Types
- Each
- Power Rating
- 31W 39W 46W 54W
- Product Range
- Batten X1 CCT
- Sensor
- No
- Unspsc V18
- 39111544
- Unspsc V24
- 39111544
- Voltage Rating
- 230V
- Weight
- 1.71250kg
- Width
- 55mm
