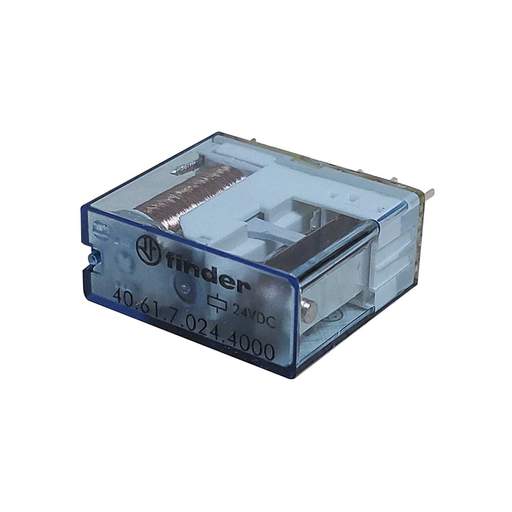

Finder 8 Pin 24V DC 16A 1 Pole Miniature PCB / Plug-In Power Relay
Part Code: 4061-7024-4000
Stock Code: 2835-6355
Finder 8 Pin 24V DC 16A 1 Pole Miniature PCB / Plug-In Power Relay
Part Code: 4061-7024-4000
Stock Code: 2835-6355
Features
- Power relay for direct PCB or socket mount
- 1CO 16A [5.0mm pin pitch]
- AgSnO2 contact material
- Series 95 socket required for 35mm DIN rail [EN 60715] mounting [sold separately]
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Finder
- Coil Voltage
- 24V DC
- Colour
- Blue
- Compliance
- CE, CCC, CSA, EAC, IMQ, LR, RINA, UL, VDE
- Contact Configuration
- 1 CO
- Current Rating
- 16A
- Depth
- 30mm
- Dimensions
- (H)12 mm x (W)29 mm x (D)30 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 12mm
- Indication Lamp
- No
- Maximum Operating Temperature
- 85°C
- Minimum Operating Temperature
- -40°C
- Mounting
- PCB/Plug-In
- Number of Pins
- 8
- Number of Poles
- Single Pole
- Packaging Types
- Each
- Standards
- EN 60335-1
- Unspsc V18
- 39122325
- Unspsc V24
- 39122325
- Voltage Rating
- 250V
- Weight
- 0.01600kg
- Width
- 29mm
