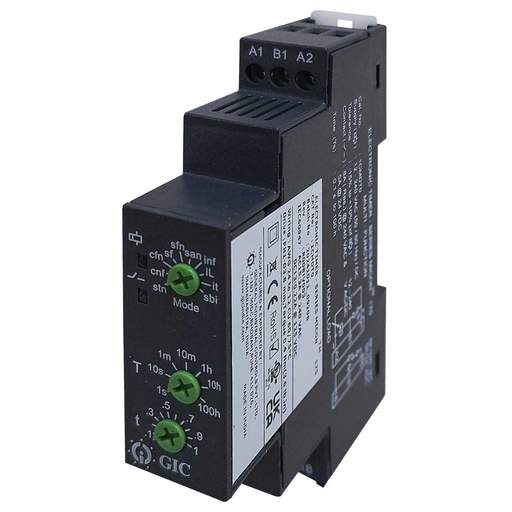

GIC 8A 12-230V AC / DC Multi Function Timer SPCO
Part Code: 1CMDT0
Stock Code: 2839-1305
GIC 8A 12-230V AC / DC Multi Function Timer SPCO
Part Code: 1CMDT0
Stock Code: 2839-1305
Features
- 10 Multifunction modes
- Wide voltage range for both AC and DC
- Wide time range: 0.1s - 100h
- LED Indications for power and relay status
- Independent settings for both on time and off time
- Low power consumption
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- Black
- Compliance
- CE, RoHS
- Current Rating
- 8A
- Depth
- 65mm
- Dimensions
- (H)90 mm x (W)18 mm x (D)65 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 90mm
- IP Rating
- IP20
- Material
- Flame Retardant UL94-V0
- Maximum Operating Temperature
- 60°C
- Minimum Operating Temperature
- -10°C
- Mounting
- DIN Rail
- Number of Modules
- 1
- Number of Poles
- Single Pole
- Operation Type
- Multifunction
- Packaging Types
- Each
- Product Range
- Series Micon 175
- Standards
- IEC 61000, IEC 60068
- Timer Range
- 0.1 secs - 100
- Unspsc V18
- 39121523
- Unspsc V24
- 39121523
- Voltage Range
- 12 - 230V AC/DC
- Weight
- 0.08500kg
- Width
- 18mm
