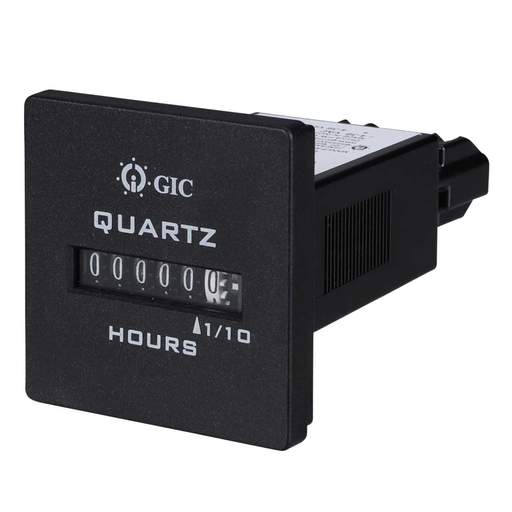

GIC 4 to 36V AC / DC Hours Run Panel Mounted Counter
Part Code: LC37F1
Stock Code: 2839-1317
GIC 4 to 36V AC / DC Hours Run Panel Mounted Counter
Part Code: LC37F1
Stock Code: 2839-1317
Features
- Robust design with high degree of accuracy and compact size
- Indicates operating time in hours and tenths with running indicators
- Totally sealed from dust and moisture
- Panel mountable
- 6 Digit non-resettable with automatic recycle to zero
- Voltage range: 3 - 36V
- Shock and vibration proof
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Accuracy
- ± 0.02%
- Colour
- Black
- Compliance
- CE, RoHS
- Depth
- 74mm
- Dimensions
- (H)48 mm x (W)48 mm x (D)74 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 48mm
- IP Rating
- IP66
- Mounting
- Panel
- Operating Temperature Range
- -40 - 85°C
- Packaging Types
- Box
- Product Range
- Hour Meter Series HM36
- Type
- Square Mount Bezel
- Unspsc V18
- 39121555
- Unspsc V24
- 39121555
- Voltage Range
- 4 - 36V AC / DC
- Weight
- 0.08500kg
- Width
- 48mm
