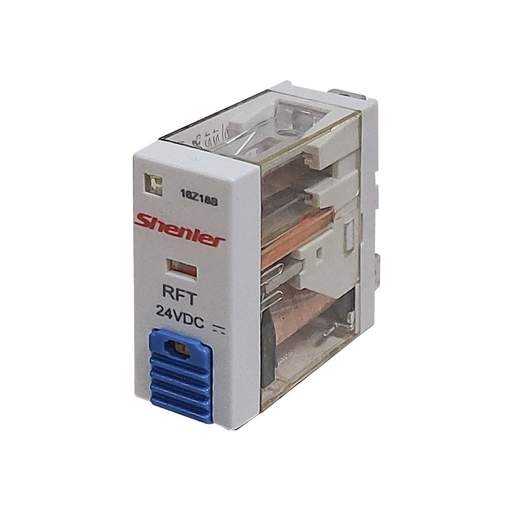

Shenler 5 Pin 24V DC 12A 1 Pole Miniature Changeover Plug In Relay
Part Code: RFT1CO024LT
Stock Code: 2839-1323
Shenler 5 Pin 24V DC 12A 1 Pole Miniature Changeover Plug In Relay
Part Code: RFT1CO024LT
Stock Code: 2839-1323
Features
- Slim and compact size
- Non-latching
- Non-polarity LED integrated in relay
- Lockable test button and inspection window
- Identification of coils through test button colour [AC red / DC blue]
- Conformity with RoHs directive
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Changeover
- Yes
- Coil Voltage
- 24V DC
- Colour
- Transparent
- Compliance
- CE, UL/CUR, CQC, RoHS
- Contact Configuration
- 1 CO
- Current Rating
- 12A
- Depth
- 29mm
- Dimensions
- (H)33 mm x (W)13 mm x (D)29 mm
- Guarantee
- 1 Year
- Height
- 33mm
- Led Indication
- Yes
- Material
- Ag Alloy
- Maximum Operating Temperature
- 55°C
- Minimum Operating Temperature
- -40°C
- Mounting
- Plug-In
- Number of Pins
- 5
- Number of Poles
- Single Pole
- Packaging Types
- Each
- Supplied With
- LED, Lockable Test Button and Mechanical Indicator
- Unspsc V18
- 39122325
- Unspsc V24
- 39122325
- Voltage Rating
- 230V
- Weight
- 0.02000kg
- Width
- 13mm
