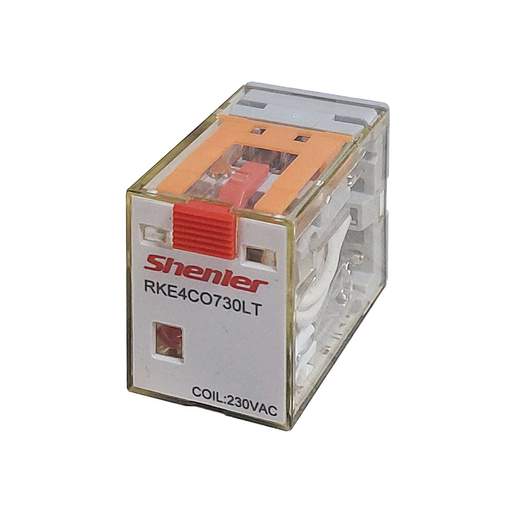

Shenler 14 Pin 230V AC 5A 4 Pole Miniature Changeover Plug In Relay
Part Code: RKE4CO730LT
Stock Code: 2839-1356
Shenler 14 Pin 230V AC 5A 4 Pole Miniature Changeover Plug In Relay
Part Code: RKE4CO730LT
Stock Code: 2839-1356
Features
- Slim and compact size
- Non-latching
- Non-polarity LED integrated in relay
- Lockable test button and inspection window
- Identification of coils through test button colour [AC red/ DC blue]
- Conformity with RoHs directive
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Changeover
- Yes
- Coil Voltage
- 230V AC
- Colour
- Transparent
- Compliance
- CE, UL/CUR, CQC, RoHS
- Contact Configuration
- 4 CO
- Current Rating
- 5A
- Depth
- 28mm
- Dimensions
- (H)36 mm x (W)21 mm x (D)28 mm
- Guarantee
- 1 Year
- Height
- 36mm
- Led Indication
- Yes
- Material
- Ag Alloy
- Maximum Operating Temperature
- 70°C
- Minimum Operating Temperature
- -55°C
- Mounting
- Plug-In
- Number of Pins
- 14
- Number of Poles
- 4 Pole
- Packaging Types
- Each
- Supplied With
- LED, Lockable Test Button and Mechanical Indicator
- Unspsc V18
- 39122325
- Unspsc V24
- 39122325
- Voltage Rating
- 230V
- Weight
- 0.04000kg
- Width
- 21mm
