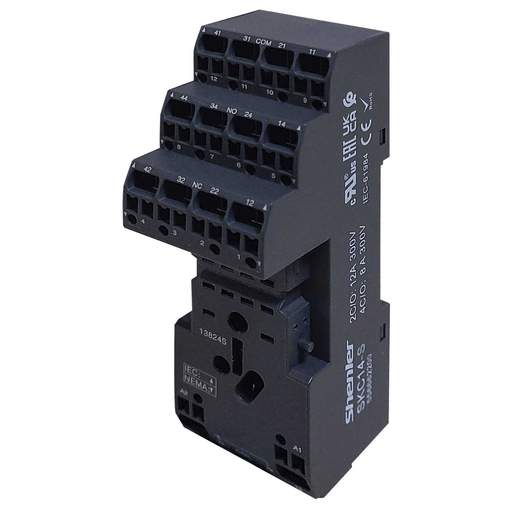

Shenler SKC14-S 14 Pin 4PCO Plug In Minature Relay Base with Push-In Terminals
Part Code: SKC14-S
Stock Code: 2839-1368
Shenler SKC14-S 14 Pin 4PCO Plug In Minature Relay Base with Push-In Terminals
Part Code: SKC14-S
Stock Code: 2839-1368
Features
- DIN Rail mounted plug-in miniture relay base for the RKE and RKF relays
- Designed to decrease wiring time with its push-in terminals
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- Black
- Compliance
- CE
- Current Rating
- 8A
- Depth
- 43mm
- Dimensions
- (H)102 mm x (W)31 mm x (D)43 mm
- Guarantee
- 1 Year
- Height
- 102mm
- IP Rating
- IP20
- Maximum Operating Temperature
- 85°C
- Minimum Operating Temperature
- -40°C
- Mounting
- DIN Rail
- Number of Pins
- 14
- Packaging Types
- Each
- Suitable For
- RKE and RFK relays
- Terminal Type
- Push-In
- Unspsc V18
- 39122335
- Unspsc V24
- 39122335
- Voltage Rating
- 230V
- Weight
- 0.05000kg
- Width
- 31mm
