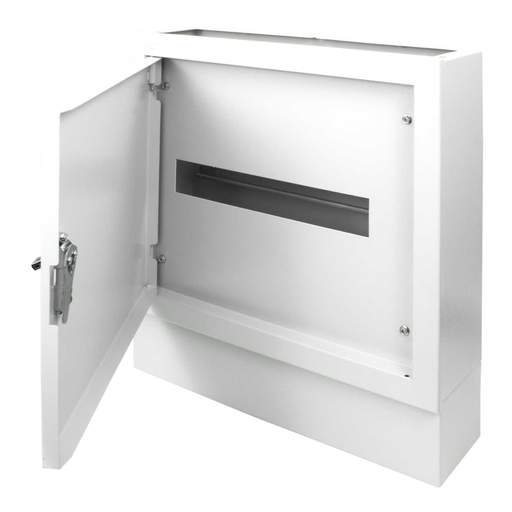

MCG 16 Module TP+N Extension Board
Part Code: TPN-EXTB
Stock Code: 2840-6932
MCG 16 Module TP+N Extension Board
Part Code: TPN-EXTB
Stock Code: 2840-6932
Features
- 16 module [4 x triple pole ways]
- Rated voltage 240/415V 50/60Hz
- Modular construction design
- Din rail fitted
- 1.2mm sheet steel enclosure
- Polyester powder coated [colour RAL7035]
- Reversible and lockable door
- Top and bottom cable entry/exit
- Tested to BS EN 61439-3
- Degree Protection IP3X [door closed]
- Full optional accessories available
- Only for use with MCG Gen 2 range of TPN Boards
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Entry
- Top and bottom cable entry/exit
- Compliance
- UKCA, CE
- Depth
- 135mm
- Dimensions
- (H)500 mm x (W)450 mm x (D)135 mm
- Door Type
- Reversible/Lockable Hinged Door
- Guarantee
- 1 Year
- Height
- 500mm
- IP Rating
- IP3X
- Lockable
- Yes
- Material
- Sheet Steel
- Mounting
- Surface
- Number of Modules
- 16
- Packaging Types
- Box
- Product Range
- TPN
- Suitable For
- Only for use with MCG Gen 2 range of TPN Boards
- Supplied With
- Neutral and Earth terminals and cable box
- Unspsc V18
- 39121110
- Unspsc V24
- 39121110
- Video Url
- https://www.youtube.com/embed/A1SODNuVdfA
- Weight
- 7.47000kg
- Width
- 450mm
