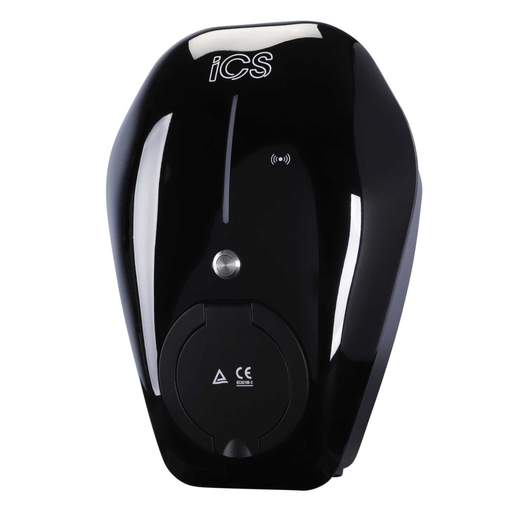

ICS 7kW Intelligent EV Charger 32A Type 2 Socket with RFID Reader and 4G
Part Code: ICS7E
Stock Code: 2856-5206
ICS 7kW Intelligent EV Charger 32A Type 2 Socket with RFID Reader and 4G
Part Code: ICS7E
Stock Code: 2856-5206
Features
- Single phase 230V AC 7.2kW fast AC charging
- RFID reader
- Auto Charge, plug and charge ready, V2G ready
- iCS2.0Lite App included for smartphone configuration and app control
- Built-in load management [CT clamps can be connected directly]
- Compatible with solar and battery storage
- Full OCPP profiles implemented including core / firmware management / local auth list management / reservation / smart charging / remote trigger [1.6J and can be updated to 2.0.1 upon request] allowing connection to any OCPP back-end software platform
- Pre-configured for use with iCS2.0LITE and FUUSE back-end software platforms
- Automatic minor fault recovery with configurable manual button reset for RCD and earth faults
- No earth rod required [on TN-C-S PME system]
- Branded and bespoke front cover options available
- Please check the latest EV chargepoint model list on the government website for OZEV grant eligibility
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Charging Access
- Push Button / Auto Start/ App / RFID
- Charging Mode
- 3
- Charging Power
- 7.2kW
- Colour
- Black
- Compliance
- CE, UKCA
- Connectivity
- 4G Bluetooth Ethernet Wi-Fi
- Current Rating
- 32A
- Depth
- 128mm
- Dimensions
- (H)288 mm x (W)208 mm x (D)128 mm
- Dynamic Load Managemen
- Yes
- Ev Type
- Type 2
- Finish
- Black
- Frequency
- 50/60 Hz
- Guarantee
- 5 Years
- Height
- 288mm
- IP Rating
- IP55
- Ik Rating
- IK08
- Metered
- Yes
- Mounting
- Wall / Pedestal [Sold Separately]
- Number of Chargepoints
- 1
- Number of Ways
- 1
- Ocpp Compliant
- OCPP 1.6
- off Peak Charging
- Yes
- Operating Temperature Range
- -30 - +50°C
- Output Type
- Type 2 Socket
- Ozev Approval
- EVHS / WCS
- Packaging Types
- Each
- Pen Fault Protection
- Yes
- Product Range
- E Series - ISO15118 AC Chargers
- Socket Protection
- Overload, DC Sensitive and Fault Current Protected
- Standards
- EN61851-1, EN61851-21-2, EN61000-3-11, EN6100-3-12
- Status Indicator
- LED
- Suitable For
- Home and Light Commercial
- Type
- Mode 3
- Unspsc V18
- 25175002
- Unspsc V24
- 25175002
- Voltage Rating
- 230V
- Weight
- 3.16460kg
- Width
- 208mm
- kW Rating
- 7.2kW
