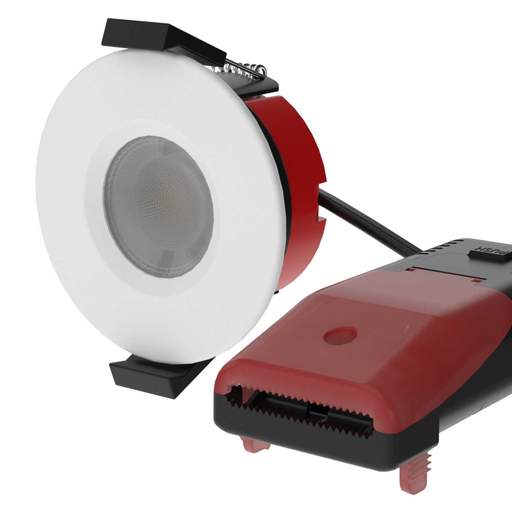

Xcite X1 FRD 4W / 6W LED CCT Fire Rated Dimmable Downlight White
Part Code: XCFRAX1W
Stock Code: 2856-6196
Xcite X1 FRD 4W / 6W LED CCT Fire Rated Dimmable Downlight White
Part Code: XCFRAX1W
Stock Code: 2856-6196
Features
- Wattage and colour temperature are easily selectable on-site via switches located underneath the magnetic bezel
- Wattage selectable [4W / 6W]
- CCT adjustable [2700K / 3000K / 4000K / 6000K]
- Dimmable
- Plug and play connections
- 30, 60 and 90 minute fire rating with solid timber joists
- Supplied with white magnetic bezel
- Interchangeable X1 FRD bezels and conversion plates available [sold separately]
- 5 year warranty [1 year on-site]
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Beam Angle
- 60°
- Class Type
- Class 2
- Colour
- White
- Colour Rendering Index(Cri)
- 80
- Colour Temperature
- Selectable - 2700/3000/4000/6000 K
- Compliance
- UKCA, CE
- Cut Out
- 70mm
- Depth
- 45mm
- Diameter
- 85mm
- Dimensions
- (Dia)85 mm x (D)45 mm
- Dimmable
- Yes
- Efficacy Rating
- 93
- Energy Saving
- Yes
- Finish
- White
- Fire Rated
- Yes
- Guarantee
- 5 Years
- IP Rating
- IP65
- Ik Rating
- IK04
- Lamp Life
- 50000h
- Lamp Type
- Integrated LED
- Lumen Range
- 340 - 610 lm
- Lumens Output
- 340lm 610lm
- Material
- PC / Steel
- Mounting
- Recessed
- Packaging Types
- Each
- Power Rating
- 4W 6W
- Product Range
- X1 FRD
- Supplied With
- White Bezel
- Unspsc V18
- 39111515
- Unspsc V24
- 39111515
- Voltage Rating
- 230V
- Weight
- 0.25000kg
