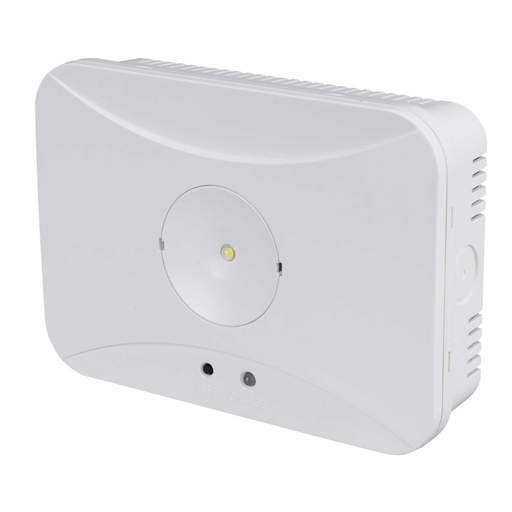

1W LED Surface Mounted Emergency Downlight with Self Test
Part Code: XCSEDLA1NM3ST
Stock Code: 2857-1101
1W LED Surface Mounted Emergency Downlight with Self Test
Part Code: XCSEDLA1NM3ST
Stock Code: 2857-1101
Features
- Suitable for open areas and escape routes
- 20mm conduit side and rear cable entries
- Easy to install with simple connection wiring
- Polycarbonate body
- Operates in non-maintained mode
- Integral auto self-test for reduced maintenance
- Supplied with LiFePO4 battery
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Battery Type
- Lithium Iron Phosphate (LiFePO4)
- Class Type
- Class 1
- Colour
- White
- Colour Temperature
- 6500 K
- Depth
- 45mm
- Dimensions
- (L)170 mm x (W)120 mm x (D)45 mm
- Emergency
- Yes
- Emergency Duration
- 3 Hours
- Emergency Type
- Non-Maintained
- Energy Saving
- Yes
- Guarantee
- 3 Years
- IP Rating
- IP20
- Ik Rating
- IK06
- Lamp Type
- Integrated LED
- Length
- 170mm
- Lumens Output
- 130lm
- Material
- Polycarbonate
- Mounting
- Surface
- Number of LEDs
- 1
- Packaging Types
- Each
- Power Rating
- 1W
- Product Range
- Xcite EMS Downlight
- Standards
- BS EN 60598
- Type
- Emergency LED Downlight
- Unspsc V18
- 39111709
- Unspsc V24
- 39111709
- Voltage Rating
- 230V
- Weight
- 0.37000kg
- Width
- 120mm
