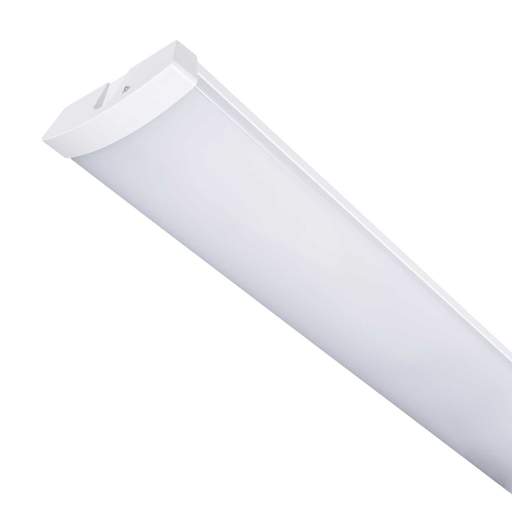

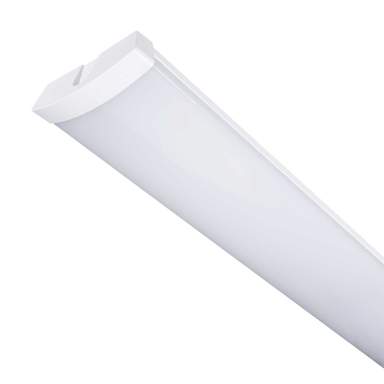

Ovia E-Lite 23W - 40W 5ft LED Tri-Colour Emergency Linear Batten Fitting
Part Code: OE540-E
Stock Code: 2858-7922
Ovia E-Lite 23W - 40W 5ft LED Tri-Colour Emergency Linear Batten Fitting
Part Code: OE540-E
Stock Code: 2858-7922
Features
- Power switchable selectable driver [25W / 31W / 36W / 42W]
- Temperature adjustable [3000K, 4000K, 6000K]
- Emergency 3 hour minimum duration
- Integrated LED
- Push-fit terminals
- IP40 rated
- 5 year warranty
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Beam Angle
- 105°
- Class Type
- Class 1
- Colour
- White
- Colour Rendering Index(Cri)
- 80
- Colour Temperature
- Selectable - 3000/4000/6000 K
- Compliance
- UKCA, CE
- Depth
- 52mm
- Dimensions
- (L)1500 mm x (W)156 mm x (D)52 mm
- Dimmable
- No
- Efficacy Rating
- 130
- Emergency
- Yes
- Emergency Duration
- 3 Hours
- Emergency Type
- Maintained
- Energy Saving
- Yes
- Finish
- White
- Guarantee
- 5 Years
- IP Rating
- IP40
- Ik Rating
- IK08
- Lamp Life
- 100000h
- Lamp Type
- Integrated LED
- Length
- 1500mm
- Lens Colour
- Opal
- Light Source Energy Rating
- C
- Lumen Range
- 2760 - 5200 lm
- Lumens Output
- 2760lm 2990lm 3480lm 3770lm 4080lm 4420lm 4800lm 5200lm
- Material
- Polycarbonate / Steel
- Mounting
- Surface
- Packaging Types
- Each
- Power Rating
- 25W 31W 36W 42W
- Product Range
- E-Lite
- Sensor
- No
- Unspsc V18
- 39111544
- Unspsc V24
- 39111544
- Voltage Rating
- 230V
- Weight
- 2.66000kg
- Width
- 156mm
