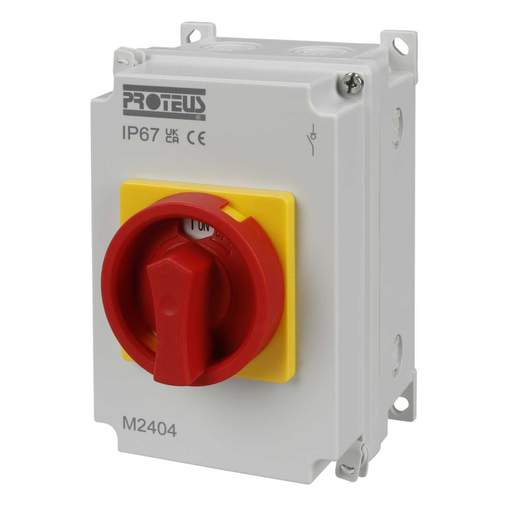

Proteus 40A 4 Pole Rotary Isolator Switch IP67
Part Code: M2404
Stock Code: 2861-1304
Proteus 40A 4 Pole Rotary Isolator Switch IP67
Part Code: M2404
Stock Code: 2861-1304
Features
- Modern design and manufacturing process
- IP67 ingress protection allows installation in the most severe conditions
- Dedicated LOCK OFF position
- High switching capability
- Strong high impact resistance enclosure
- Switch rating at AC23
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Proteus
- Cable Entry
- 2 x M20/25 knockouts - top ,bottom & rear. 2 x M16 knockouts each side.
- Colour
- Red/Yellow/Grey
- Current Rating
- 40A
- Depth
- 127mm
- Dimensions
- (H)160 mm x (W)105 mm x (D)127 mm
- Guarantee
- 25 Years
- Height
- 160mm
- IP Rating
- IP67
- Lockable
- Yes
- Material
- Glass Reinforced Polyester Resin
- Mounting
- Surface
- Number of Poles
- 4 Pole
- Packaging Types
- Each
- Standards
- BSEN 60947:1 & 3, EN 60529
- Unspsc V18
- 39122217
- Unspsc V24
- 39122217
- Voltage Rating
- 400V 690V
- Weight
- 0.60200kg
- Width
- 105mm
