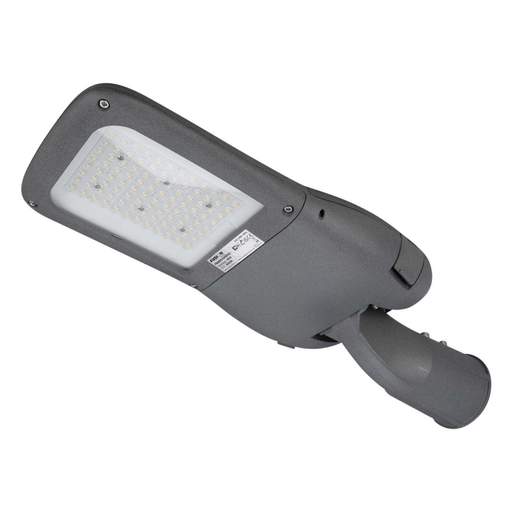

Fusion Nano 40W LED Street Light with Nema Socket 4000K
Part Code: FNANO40NEMA
Stock Code: 2861-1436
Fusion Nano 40W LED Street Light with Nema Socket 4000K
Part Code: FNANO40NEMA
Stock Code: 2861-1436
Features
- NEMA socket with shorting cap [optional photocell sensor available separately]
- Adjustable spigot +15°
- Toolless gear tray removal for ease of maintenance
- LED Lifetime: 50,000hrs [L70]
- Lighting distribution: Type II
- Die-cast aluminium powder-coated body
- Pre-wired with 0.3m power cable
- Suitable for 76mm/60mm pole or outreach arm mounting
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Fusion
- Class Type
- Class 1
- Colour
- Grey
- Colour Temperature
- 4000 K
- Compliance
- UKCA, CE
- Depth
- 135mm
- Dimensions
- (L)578 mm x (W)228 mm x (D)135 mm
- Energy Saving
- Yes
- Guarantee
- 5 Years
- IP Rating
- IP66
- Ik Rating
- IK08
- Lamp Life
- 50000h
- Length
- 578mm
- Lumens Output
- 6000lm
- Material
- Die-Cast Aluminium
- Mounting
- 60mm / 76mm Spigot
- Operating Temperature Range
- -15 - +40°C
- Packaging Types
- Box
- Power Rating
- 40W
- Product Range
- Nano
- Type
- Type II Distribution
- Unspsc V18
- 39111603
- Unspsc V24
- 39111603
- Voltage Rating
- 277V
- Weight
- 5.18500kg
- Width
- 228mm
- With Photocell
- No
- With Socket
- Yes
