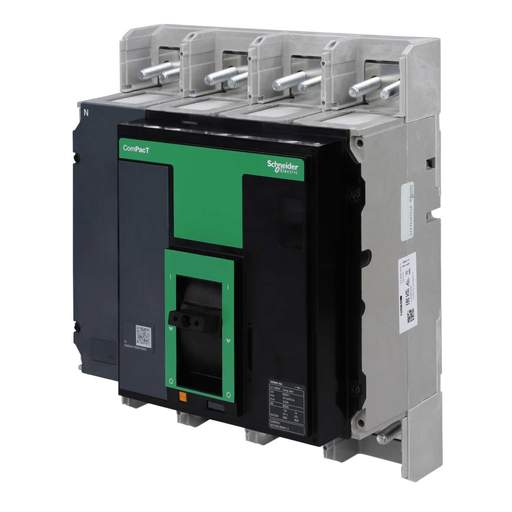

Schneider Merlin Powerpact4 800A Four Pole Switch Disconnector ComPacT NS800NA
Part Code: C080S4NAFM
Stock Code: 2855-7346
Schneider Merlin Powerpact4 800A Four Pole Switch Disconnector ComPacT NS800NA
Part Code: C080S4NAFM
Stock Code: 2855-7346
Features
- For use with MG8 range of panelboards
- Network type CA
- Breaking capacity code NA
- Suitable for isolation conforming to IEC 60947-3
- Trip unit rating 800A 60°C
- Network frequency 50/60Hz
- Toggle control type
- Front upside connection
- Front downside connection
- Rated insulation voltage 800V AC 50/60Hz conforming to IEC 60947-3
- Rated impulse withstand voltage 8kV conforming to IEC 60947-3
- *Requires LV433639 Terminal Shield & 33646 Rear Interphase Barrier [both sold separately]
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Schneider Merlin
- Current Rating
- 800A
- Depth
- 147mm
- Dimensions
- (H)327 mm x (W)280 mm x (D)147 mm
- Guarantee
- 18 Months
- Height
- 327mm
- Mounting
- Panel
- Number of Poles
- Four Pole
- Packaging Types
- Each
- Short Circuit Rating
- 52kA
- Standards
- IEC 60947-3
- Type
- ComPacT NS800NA
- Unspsc V18
- 39121616
- Unspsc V24
- 39121616
- Voltage Rating
- 440V
- Weight
- 15.24100kg
- Width
- 280mm
