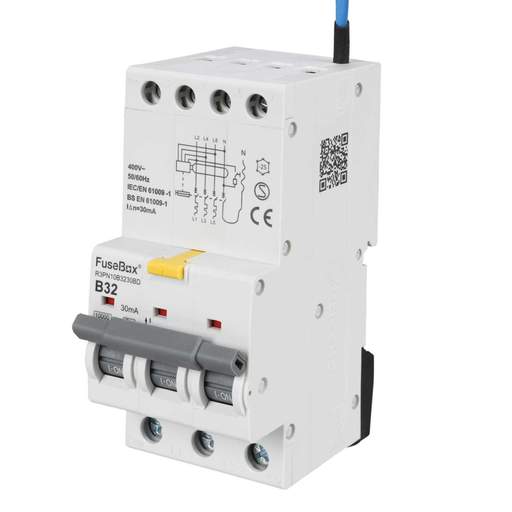

Fusebox 32A 3P+N 3 Module B Curve Bidirectional 10kA 30mA Type A RCBO
Part Code: R3PN10B3230BD
Stock Code: 2865-6910
Fusebox 32A 3P+N 3 Module B Curve Bidirectional 10kA 30mA Type A RCBO
Part Code: R3PN10B3230BD
Stock Code: 2865-6910
Features
- For use with Fusebox TP+N Distribution Boards
- Bi-directional design, suitable for Solar PV and EV applications where current flows in both directions
- Type A sensitivity, detects AC and pulsating DC currents for maximum safety
- Switched Neutral
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Fusebox
- Compliance
- UKCA, CE
- Current Rating
- 32A
- Depth
- 78.7mm
- Dimensions
- (H)114 mm x (W)53.4 mm x (D)78.7 mm
- Guarantee
- 1 Year
- Height
- 114mm
- Incoming Terminal Capacity
- 25mm²
- Material
- Plastic / Metal
- Mounting
- DIN Rail
- Number of Modules
- 3
- Number of Poles
- Triple Pole & Switched Neutral
- Outgoing Terminal Capacity
- 16mm²
- Packaging Types
- Each
- Rcd Type
- A
- Short Circuit Rating
- 10kA
- Standards
- IEC/EN 61009-1
- Tripping Characteristics
- B Curve
- Tripping Sensitivity
- 30mA
- Unspsc V18
- 39121601
- Unspsc V24
- 39121601
- Voltage Rating
- 400V
- Width
- 53.4mm
