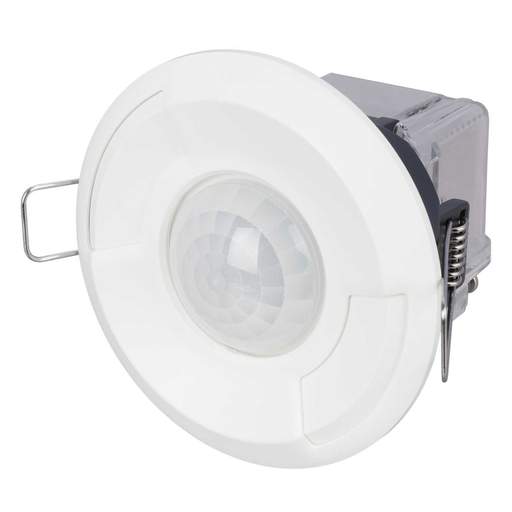

CP Electronics Legrand Green-i Recessed PIR Sensor White IP41
Part Code: GEFL-W
Stock Code: 2866-0009
CP Electronics Legrand Green-i Recessed PIR Sensor White IP41
Part Code: GEFL-W
Stock Code: 2866-0009
Features
- Recessed PIR sensor
- Lux level sensing
- Works with any type of lamp
- Adjustable time delay, lux and range settings
- Factory setting: Medium sensitivity / 2.5m mounting height / 14m detection range
- Load rating: 8.5A incandescent / resistive, fluorescent 4.3A, LED 3A

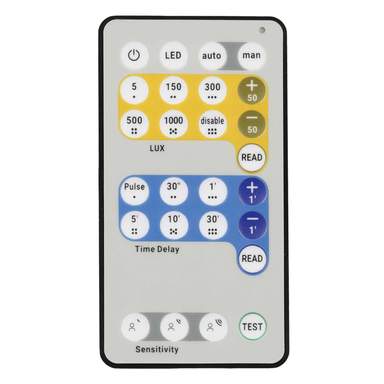

- Adjustable via IR handset [GEFL-HS sold separately]
- IP41 Rated
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- CP Electronics Legrand
- Class Type
- Class 2
- Colour
- White
- Current Rating
- 8.5A
- Cut Out
- 67mm
- Depth
- 65.3mm
- Detection Angle
- 360°
- Detection Range
- 14m
- Diameter
- 84.5mm
- Dimensions
- (Dia)84.5 mm x (D)65.3 mm
- Finish
- White
- Guarantee
- 5 Years
- IP Rating
- IP41
- Ik Rating
- IK04
- Lux Adjustment
- Yes
- Lux Range
- 5 - 2000 lux
- Material
- Flame Retardant ABS
- Maximum Load
- 8.5A
- Maximum Switching Load
- Incandescent - 8.5A, Fluorescent - 4.3A, LED - 3A, Energy Saving - 2.1A
- Mounting
- Ceiling / Recessed
- Mounting Height
- 2.5m
- Packaging Types
- Each
- Product Range
- green-i
- Sensor
- PIR
- Timer Adjustment
- 10 secs - 45 mins
- Unspsc V18
- 39122236
- Unspsc V24
- 39122236
- Voltage Rating
- 230V
