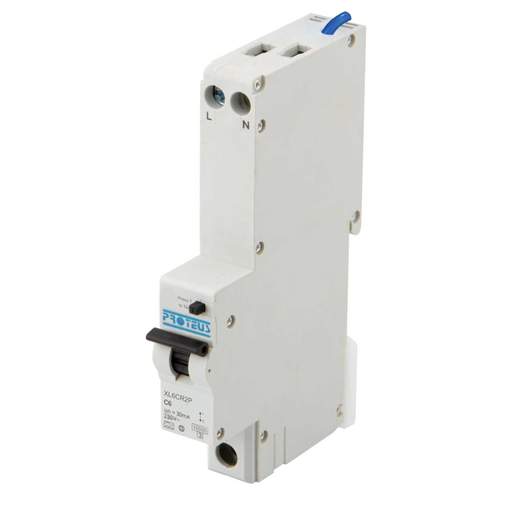

Proteus XL 6A Double Pole 1 Module Bidirectional C Curve 10kA 30mA Type A RCBO
Part Code: XL6CR2P
Stock Code: 2866-3282
Proteus XL 6A Double Pole 1 Module Bidirectional C Curve 10kA 30mA Type A RCBO
Part Code: XL6CR2P
Stock Code: 2866-3282
Features
- Suitable for ABX, BX, XL, OPBX, CBX, MCX and PDU boards
- 30mA earth leakage rating, Type A earth leakage protection
- Thermal-Magnetic operation
- Current limiting C Curve operating characteristics
- Mechanical Flag Indicator shows ON or OFF
- Operating dolly may be locked in either the ON or OFF position
- Selected for their low electrical resistance and low propensity to weld under fault conditions
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Proteus XL
- Bidirectional
- Yes
- Current Rating
- 6A
- Depth
- 67mm
- Dimensions
- (H)116 mm x (W)17.8 mm x (D)67 mm
- Guarantee
- 1 Year
- Height
- 116mm
- Incoming Terminal Capacity
- 25mm²
- Material
- PBT case
- Mounting
- DIN Rail
- Number of Modules
- 1
- Number of Poles
- Double Pole
- Outgoing Terminal Capacity
- 16mm²
- Packaging Types
- Each
- Product Range
- Proteus RCBO
- Rcd Type
- A
- Short Circuit Rating
- 10kA
- Standards
- BS EN 61009
- Tripping Characteristics
- C Curve
- Tripping Sensitivity
- 30mA
- Unspsc V18
- 39121601
- Unspsc V24
- 39121601
- Voltage Rating
- 230V
- Width
- 17.8mm
