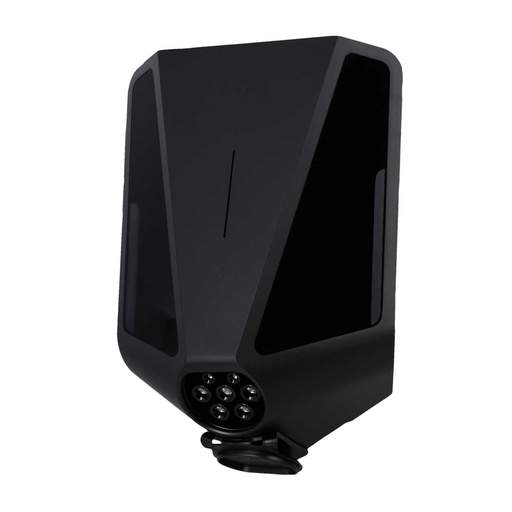

Easee Charge Pro MID 7.4kW - 22kW Charging Station with 32A Type 2 Socket
Part Code: 10263
Stock Code: 2866-5172
Easee Charge Pro MID 7.4kW - 22kW Charging Station with 32A Type 2 Socket
Part Code: 10263
Stock Code: 2866-5172
Features
- Scalable EV charging solution with MID-compliant meter for large sites
- Easee Charge Pro ensures accurate billing, seamless energy management, and flexibility
- Fully dynamic charging power 1.4 - 22kW [1 and 3 phase charging]
- Designed for large sites, the chargers support future expansion with intelligent load and phase balancing without costly electrical upgrades, ensuring seamless load distribution across your entire building
- Automatic adjustment of charging speed based on available current
- Built-in e-SIM [LTE Cat M1]
- Permanent locking of the Type 2 cable
- Universal, fits all types of electric cars and power supplies
- Easee App for control and monitoring
- Fitted with an anti-tamper device
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Charging Access
- App / RFID
- Charging Mode
- 3
- Charging Power
- 22kW
- Colour
- Black
- Compliance
- CE
- Connectivity
- GPRS Wi-Fi
- Current Rating
- 32A
- Depth
- 106mm
- Dimensions
- (H)256 mm x (W)193 mm x (D)106 mm
- Dynamic Load Managemen
- Yes
- Ev Type
- Type 2
- Finish
- Black
- Frequency
- 50 Hz
- Guarantee
- 5 Years
- Height
- 256mm
- IP Rating
- IP54
- Ik Rating
- IK10
- Lockable
- Yes
- Metered
- Yes
- Mounting
- Wall / Pole [Sold Separately]
- Number of Chargepoints
- 1
- Number of Ways
- 1
- Ocpp Compliant
- OCPP 1.6
- off Peak Charging
- Yes
- Output Type
- Type 2 Socket
- Packaging Types
- Each
- Pen Fault Protection
- No
- Socket Protection
- Built-in RCD for ground fault protection [30 mA AC/6 mA DC]
- Standards
- IEC 60947-2 and IEC 62955, 9.9
- Status Indicator
- LED
- Suitable For
- Public / Workplace
- Type
- Mode 3
- Unspsc V18
- 25175002
- Unspsc V24
- 25175002
- Voltage Rating
- 230V 415V
- Weight
- 1.60000kg
- Width
- 193mm
- kW Rating
- 22kW
