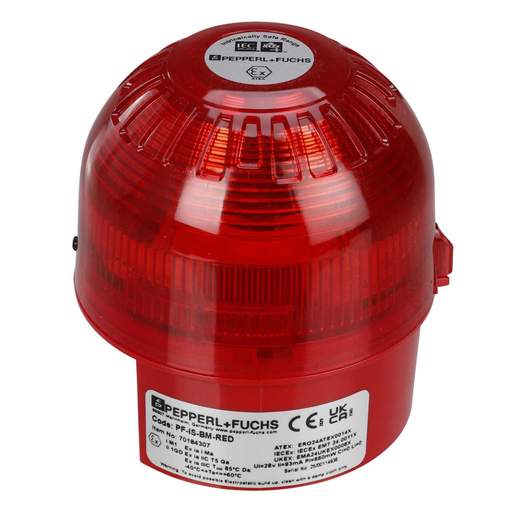

Pepperl & Fuchs Atex Zone 0 LED Signal Beacon
Part Code: 70184307
Stock Code: 2871-6031
Pepperl & Fuchs Atex Zone 0 LED Signal Beacon
Part Code: 70184307
Stock Code: 2871-6031
Features
- Compact, intrinsically safe signal beacon with ATEX, IECEx and UKEX approval
- For use in Zone 0, 1, 2, 20, 21, 22 and mining applications
- Flashing or steady state options
- Recommended for fire, security and process control applications
- Diode polarized and end of line resistor compatible
- 9 x high intensity LED's
- *Includes RED colour lens ONLY
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Atex Classificatio
- 1 II 1 GD, Ex ia IIC T5 Ga, Ex ia IIIC T200 85°C Da, 1 I M1, Ex ia I Ma
- Certification Code
- ERO 24 ATEX 0014X
- Colour
- Red
- Depth
- 102mm
- Dimensions
- (H)105 mm x (W)102 mm x (D)102 mm
- Finish
- Red [RAL 3000]
- Guarantee
- 1 Year
- Height
- 105mm
- IP Rating
- IP66
- Lens Colour
- Red
- Material
- Polycarbonate UL94 V2
- Packaging Types
- Each
- Standards
- EN 60529
- Unspsc V18
- 39111706
- Unspsc V24
- 39111706
- Voltage Range
- 16-28 V DC
- Weight
- 0.27700kg
- Width
- 102mm
- Zone Rating
- Zone 0 Zone 1 Zone 2 Zone 21 Zone 22
