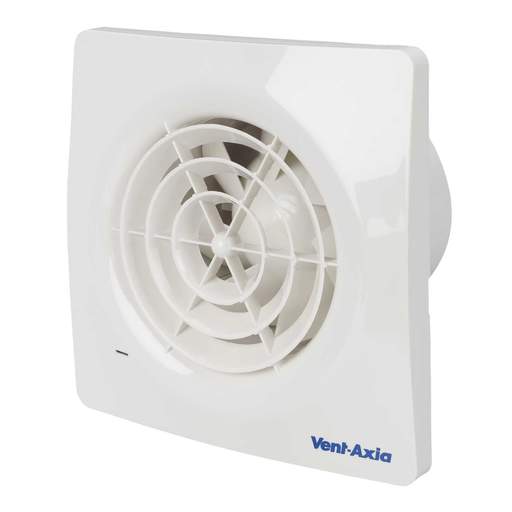

Vent Axia VASF100HTF 100mm 4" Silent Fan with Humidistat and Timer Fixed Grille
Part Code: 416474
Stock Code: 2871-8899
Vent Axia VASF100HTF 100mm 4" Silent Fan with Humidistat and Timer Fixed Grille
Part Code: 416474
Stock Code: 2871-8899
Features
- Silent bathroom fan [from only 12dB[A]]
- Stylish ventilation without compromising on performance
- Humidity controlled with fixed 15 minute timer overrun
- 1 of 2 speeds selectable at installation [fixed or intermittent]
- Backdraught shutters included
- IPX5 [zone 1 rated]
- High efficiency motor
- Meets current building regulations approved document F and L
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Airflow Cubic Metresper Hour
- 22 / 83 m³/h
- Airflow Litresper Second
- 6 / 23 l/s
- Colour
- White
- Compliance
- Compliies with Building Regulations F and L
- Decibel Rating
- 12 dB[A] @ 3 m
- Depth
- 98mm
- Dimensions
- (H)160 mm x (W)160 mm x (D)98 mm
- Ducting Size
- 100mm
- Guarantee
- 2 Years
- Height
- 160mm
- Humidistat
- Yes
- Humidistat Range
- 60 - 80%
- IP Rating
- IPX5
- Mounting
- Wall / Ceiling / Panel / Window
- Number of Speeds
- 2
- Operation Type
- Timer Humidistat
- Packaging Types
- Each
- Power Rating
- 2.7W 4.8W
- Product Range
- Silent Fan
- Timer Range
- Fixed 15
- Unspsc V18
- 40101502
- Unspsc V24
- 40101502
- Voltage Rating
- 230V
- Weight
- 0.55000kg
- Width
- 160mm
- Zone Rating
- Zone 1
