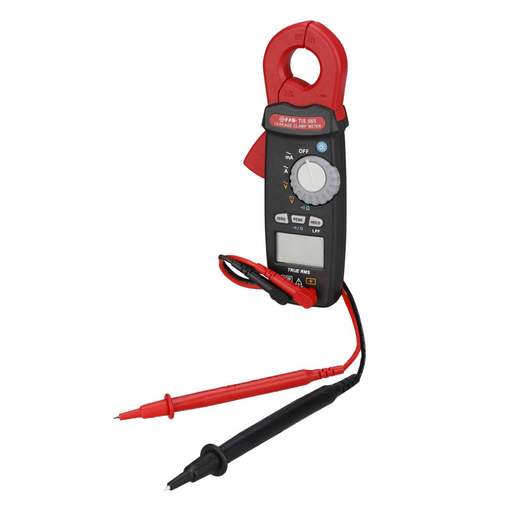

TIS Elite 60A AC TRMS Earth Leakage Clamp Meter
Part Code: TIS 565
Stock Code: 2872-0885
TIS Elite 60A AC TRMS Earth Leakage Clamp Meter
Part Code: TIS 565
Stock Code: 2872-0885
Features
- Digital earth leakage clamp meter
- Current measurement from 0.001mA to 600A AC
- Voltage measurement up to 600V AC/DC
- Resistance range 0.1Ω to 600kΩ
- Troubleshooting of RCD nuisance tripping
- Periodic measurement of leakage current at 50Hz to check for insulation deterioration
- Data hold and low battery warning features
- 18th Edition compliant
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Test Instrument Solutions
- Ac Current Measurement
- 60A
- Ac Voltage Measurement
- 600V AC
- Auto Power Down
- Yes
- Auto Ranging
- Yes
- Battery Level Indicator
- Yes
- Battery Size
- AAA
- Battery Type
- Alkaline
- Data Hold
- Yes
- Dc Voltage Measurement
- 600V DC
- Depth
- 28mm
- Dimensions
- (H)176 mm x (W)59 mm x (D)28 mm
- Display Count
- 1999
- Display Type
- LCD
- Guarantee
- 2 Years
- Height
- 176mm
- Jaw Opening Capability
- 31mm
- Number of Batteries
- 2
- Packaging Types
- Each
- Product Range
- Clamp meter
- Resistance Measurement
- 600 kΩ
- Safety Range
- CAT III 600V
- Standards
- BS EN 61326-1
- Supplied With
- Padded Case and 2 x AAA Batteries
- Type
- AC Earth Leakage Clamp Meter
- Unspsc V18
- 41113678
- Unspsc V24
- 41113678
- Width
- 59mm
