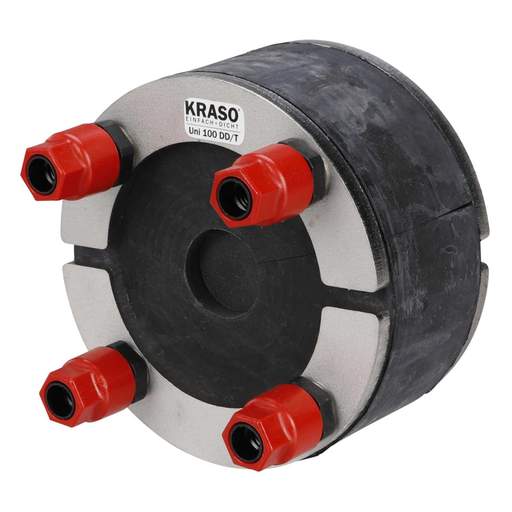

AC Cable Solutions Kraso 100mm Universal Split Mechanical Duct Sealing Insert Design 4
Part Code: KDIUNIG100
Stock Code: 2873-4106
AC Cable Solutions Kraso 100mm Universal Split Mechanical Duct Sealing Insert Design 4
Part Code: KDIUNIG100
Stock Code: 2873-4106
Features
- Optimal solution for sealing cable entries through foundations and cable ducts
- Withstands water and gas pressures up to 2.5 bar [equivalent to 25 metres of water]
- Crafted from high-quality, non-corrosive stainless steel V2A
- Exceptional durability and resistance to toxic gases [Radon, Hydrogen Sulphide, Methane and Chlorine gas] plus hazardous substances, including hydrocarbons
- High-temperature resistance
- The system consists of two components that are simple to set up. The unique, patented Torque Control Nut ensures precise installation by preventing under-tightening or over-tightening [no torque wrench required]
- Design 4 version-
- 100mm [suitable for Duct size 99mm to 103mm]
- 1 x cable/pipe entry with a diameter range of 18mm to 65mm [or blank as required] "Blank" refers to a spare hole reserved for future use. Not all holes or cable entries need to be used immediately; they can remain blank and be utilized when needed
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Entry
- 1 x cable/pipe entry with a diameter range of 18mm to 65mm [or blank]
- Compliance
- MPA-tested: 2.5 bar IAF tested–FHRK leaflet MB10 DafStB waterproof concrete guide: Stress class 1+2
- Material
- Stainless Steel, Rubber
- Packaging Types
- Each
- Unspsc V18
- 39121431
- Unspsc V24
- 39121431
- Weight
- 0.7kg
