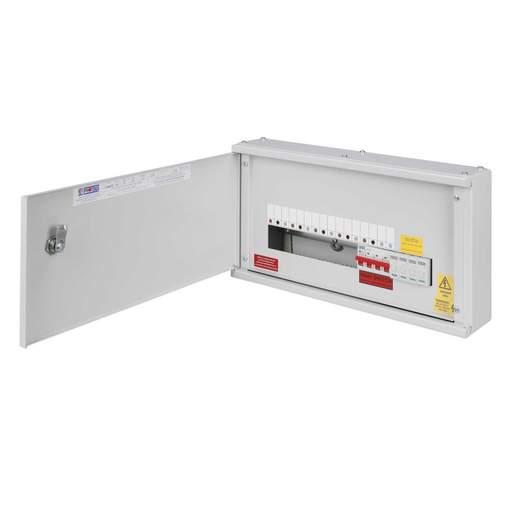

Proteus 4 Way TP+N Horizontal Distribution Board with 100A Incomer and Type 2 SPD
Part Code: ABX4S1T2
Stock Code: 2874-9634
Proteus 4 Way TP+N Horizontal Distribution Board with 100A Incomer and Type 2 SPD
Part Code: ABX4S1T2
Stock Code: 2874-9634
Features
- ABX range 3 phase horizontal MCB board
- Fantastic solution where height space is an issue in small electrical cupboards
- Also available in vertical arrangement for restricted width applications
- 80A continuous, 100A intermittent
- Accepts SP, DP and TP MCB's from 2A - 63A [Type B, C and D]
- 4 pole RCD incomer available, 63A - 100A with earth leakage sensitivity available from 30mA - 300mA
- Accepts single module RCBO's from 6A - 45A [Type B and C]
- Includes Type 2 Surge Protection Device
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Proteus
- Busbar Rating
- 100A
- Cable Entry
- Top gland plate removable
- Current Rating
- 100A
- Depth
- 110mm
- Dimensions
- (H)269 mm x (W)510 mm x (D)110 mm
- Door Type
- Metal
- Guarantee
- 1 Year
- Height
- 269mm
- IP Rating
- IP3X
- Incoming Device
- 100A 4P Isolator
- Incoming Terminal Capacity
- 50mm²
- Lockable
- Yes
- Material
- Full Cold Rolled Steel
- Mounting
- Surface
- Number of Outgoing Ways
- 4
- Packaging Types
- Each
- Product Range
- Proteus ABX
- Standards
- BS EN 61439 1 & 3, EN61643-11 Type 2, IEC 61643-11 Class II
- Supplied With
- 100A 4P Isolator & Type 2 Surge Protection Device
- Type
- 3 Phase Boards
- Unspsc V18
- 39121110
- Unspsc V24
- 39121110
- Voltage Rating
- 400V
- Width
- 510mm
