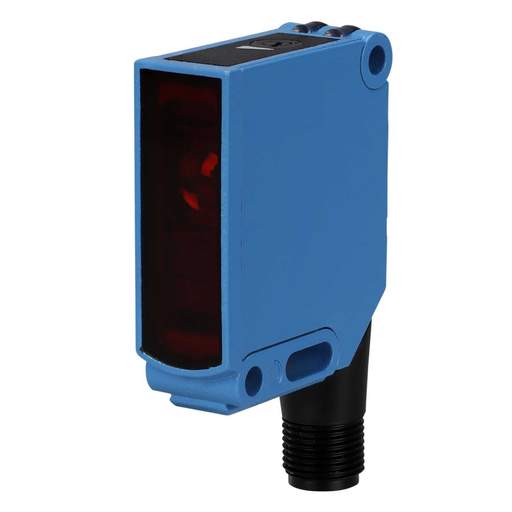

Sick WL12-3P2431 0m - 7m Detection Photoelectric Retro-Reflective Block Sensor
Part Code: 1041436
Stock Code: 2887-3900
Sick WL12-3P2431 0m - 7m Detection Photoelectric Retro-Reflective Block Sensor
Part Code: 1041436
Stock Code: 2887-3900
Features
- Photoelectric retro-reflective sensor
- Maximum sensing range: 0-7m
- 5 Turn potentiometer
- M12 4 Pin connector
- 10-30V DC supply voltage
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Compliance
- UKCA, CE
- Connector Type
- M12 Straight
- Depth
- 42mm
- Dimensions
- (H)48.5 mm x (W)15.6 mm x (D)42 mm
- Guarantee
- 1 Year
- Height
- 48.5mm
- IP Rating
- IP66 / IP67 / IP69K
- Material
- Metal / Plastic / PMMA
- Number of Pins
- 4
- Output
- PNP
- Packaging Types
- Each
- Product Range
- W12 Photoelectric Sensors
- Sensing Distance
- 7m
- Sensor Type
- Photoelectric Retro-Reflective
- Shape
- Block
- Unspsc V18
- 39122238
- Unspsc V24
- 39122238
- Voltage Range
- 10 - 30V DC
- Weight
- 0.11500kg
- Width
- 15.6mm
