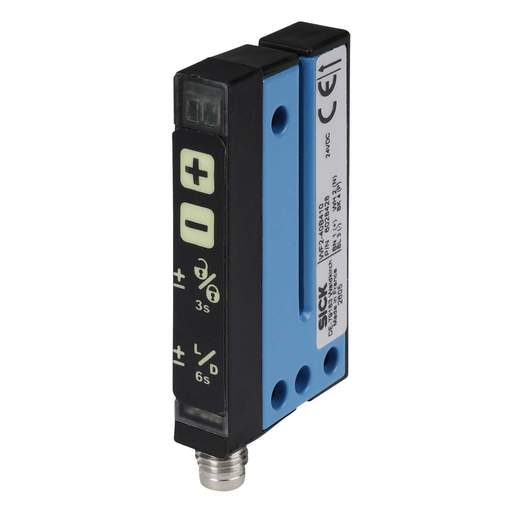

Sick WF2-40B410 Fork Sensor
Part Code: 6028428
Stock Code: 2887-5388
Sick WF2-40B410 Fork Sensor
Part Code: 6028428
Stock Code: 2887-5388
Features
- Switching output: PNP/NPN
- Switching mode: Light / Dark selectable via button
- Fork width: 2mm
- Fork depth: 42mm
- Fast response time: ≤ 100 μs
- Minimum detectable object [MDO]: 0.2mm
- M8 4 Pin male connector
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Compliance
- UKCA, CE
- Connector Type
- M8 Straight
- Depth
- 57mm
- Dimensions
- (H)32 mm x (W)10 mm x (D)57 mm
- Guarantee
- 1 Year
- Height
- 32mm
- IP Rating
- IP65
- Material
- Aluminium
- Number of Pins
- 4
- Operating Temperature Range
- -20 - 60°C
- Output
- PNP/NPN
- Packaging Types
- Each
- Product Range
- Fork Sensors: WF
- Sensor Type
- Optical Fork
- Shape
- Fork
- Unspsc V18
- 39122238
- Unspsc V24
- 39122238
- Video Url
- https://www.youtube.com/embed/LzA-yqhjfVU
- Voltage Range
- 10 - 30 V DC
- Weight
- 0.05200kg
- Width
- 10mm
