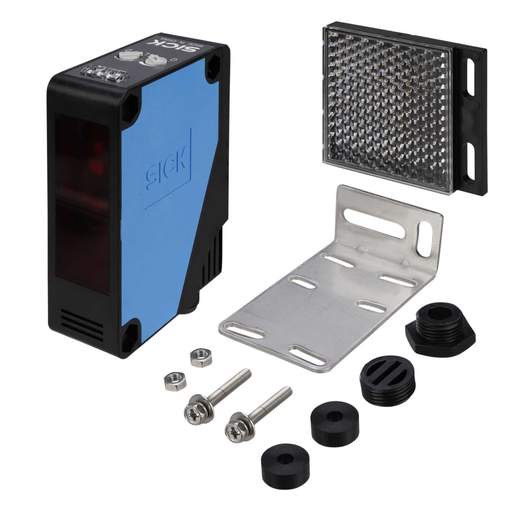

Sick WL280-2P2431 0.01m - 15m Detection Photoelectric Retro-Reflective Block Sensor
Part Code: 6044736
Stock Code: 2888-9437
Sick WL280-2P2431 0.01m - 15m Detection Photoelectric Retro-Reflective Block Sensor
Part Code: 6044736
Stock Code: 2888-9437
Features

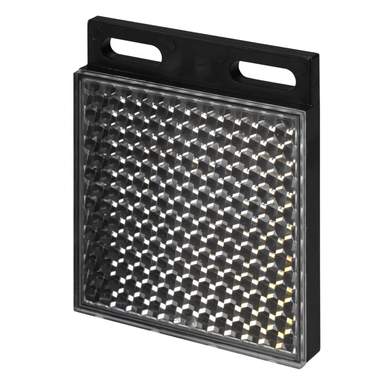

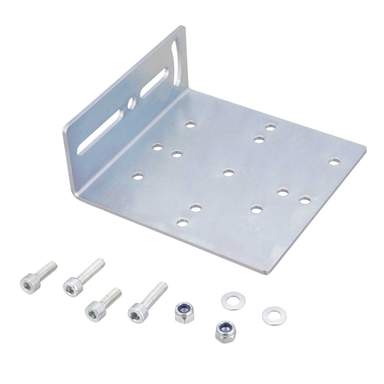

- Photoelectric retro-reflective sensor with P250 reflector and fixings
- Maximum sensing range: 0.01-15m
- Potentiometer adjustment

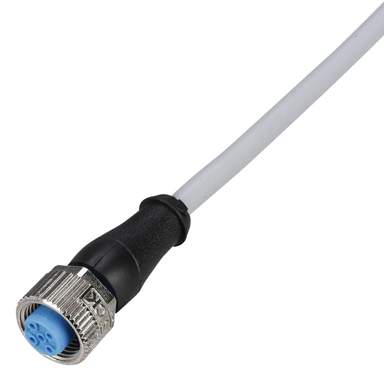

- M12 4 Pin connector
- 10-30V DC supply voltage
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Compliance
- UKCA, CE
- Connector Type
- M12 Straight
- Depth
- 63mm
- Dimensions
- (H)74.5 mm x (W)23.5 mm x (D)63 mm
- Guarantee
- 1 Year
- Height
- 74.5mm
- IP Rating
- IP66 / IP67
- Material
- Plastic / PMMA
- Number of Pins
- 4
- Output
- PNP
- Packaging Types
- Each
- Product Range
- W280-2 Photoelectric Sensors
- Sensing Distance
- 15m
- Sensor Type
- Photoelectric Retro-Reflective
- Shape
- Block
- Unspsc V18
- 39122238
- Unspsc V24
- 39122238
- Voltage Range
- 10 - 30V DC
- Weight
- 0.20400kg
- Width
- 23.5mm
