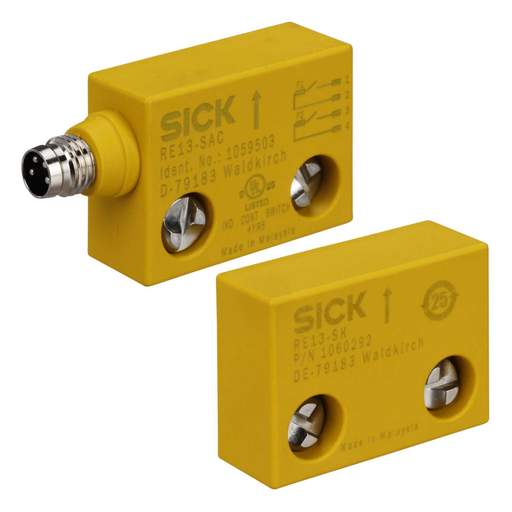

Sick RE13-SAC 30V DC Magnetic Safety Sensor Switch with Actuator
Part Code: 1059503
Stock Code: 2890-5181
Sick RE13-SAC 30V DC Magnetic Safety Sensor Switch with Actuator
Part Code: 1059503
Stock Code: 2890-5181
Features
- Magnetic safety switch equipped with NO contacts which are actuated with coded magnetic actuators
- Assured switch on distance: 7mm
- Assured switch off distance: 20mm
- Active sensor surfaces: 1
- Actuation directions: 5
- M8 4 Pin connector
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Actuator Type
- Magnetic
- Compliance
- UKCA, CE
- Connector Type
- M8 Straight
- Contact Configuration
- NO
- Depth
- 13mm
- Dimensions
- (H)36 mm x (W)26 mm x (D)13 mm
- Guarantee
- 1 Year
- Height
- 36mm
- IP Rating
- IP67
- Material
- Plastic
- Packaging Types
- Each
- Product Range
- RE1 Safety Switches
- Sensor Type
- Safety Switches
- Standards
- EN ISO 14119
- Unspsc V18
- 39122230
- Unspsc V24
- 39122230
- Video Url
- https://www.youtube.com/embed/Uy1SNCFEj7g
- Voltage Range
- 30V DC
- Weight
- 0.06500kg
- Width
- 26mm
