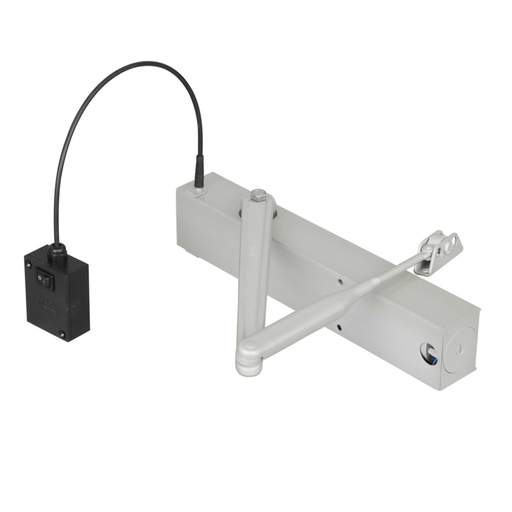

Dormakaba Dorma TS73EMF 24V DC Door Hold
Part Code: FMH7
Stock Code: 0016-9972
Dormakaba Dorma TS73EMF 24V DC Door Hold
Part Code: FMH7
Stock Code: 0016-9972
Features
- Rack-and-pinion door closer with scissor arm and hold-open unit
- A combination of hydraulic door closer and electromagnetic hold-open unit
- In conjunction with a smoke detection system, the TS 73 EMF can be used as a hold-open system for fire and smoke check doors
- For single and double leaf doors
- Meets requirements for Approved Document M and BS8300
- Convertible to free-swing door closer
- No adjustment of the hold-open point necessary
- Optimum adaptability thanks to adjustable latching action
- Hold-open possible between approx 75° and 180°
- Easy to fix
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- Silver
- Compliance
- CE Mark for Construction Products
- Depth
- 45.5mm
- Dimensions
- (H)98 mm x (W)320 mm x (D)45.5 mm
- Height
- 98mm
- Packaging Types
- Each
- Standards
- EN 1154
- Suitable For
- Door Widths up to 1100 / 1250 / 1400 mm
- Unspsc V18
- 46191505
- Unspsc V24
- 46171526
- Weight
- 1.70000kg
- Width
- 320mm
