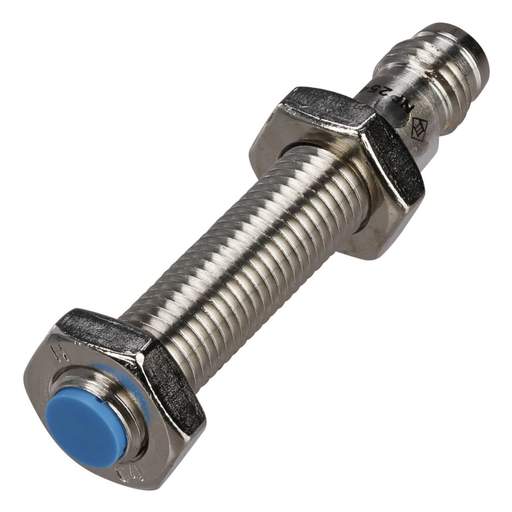

Sick IME08-1B5PSZT0S M8 10-30V DC 8mm Detection PNP NO Inductive Proximity Sensor
Part Code: 1040838
Stock Code: 2891-1955
Sick IME08-1B5PSZT0S M8 10-30V DC 8mm Detection PNP NO Inductive Proximity Sensor
Part Code: 1040838
Stock Code: 2891-1955
Features
- M8 Thread size
- 8mm Sensing range
- Flush installation
- 3 Wire M8 male connector 4 pin
- Thread length: 34mm / housing length: 50mm
- 10-30V DC supply voltage
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Compliance
- UKCA, CE
- Connector Type
- M8 Straight
- Contact Configuration
- NO
- Dimensions
- (L)50 mm
- Guarantee
- 1 Year
- IP Rating
- IP67
- Length
- 50mm
- Material
- Nickel Plated Brass, Plastic
- Number of Pins
- 4
- Output
- PNP
- Packaging Types
- Each
- Product Range
- Inductive Proximity Sensors
- Sensing Distance
- 8mm
- Sensor Type
- Inductive Proximity
- Shape
- Barrel
- Standards
- EN 60947-5-2
- Thread
- M8
- Unspsc V18
- 39122230
- Unspsc V24
- 39122230
- Voltage Range
- 10 - 30V DC
- Weight
- 0.01800kg
