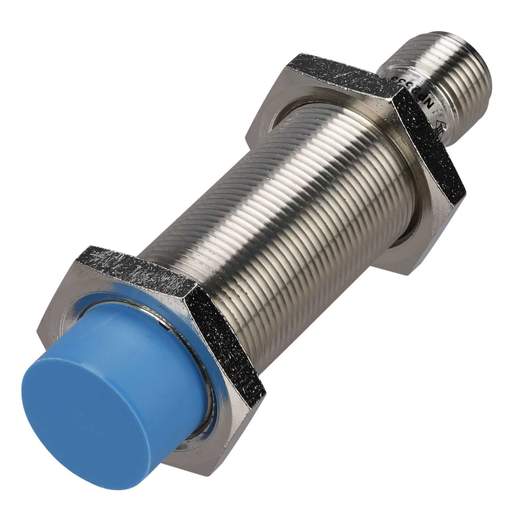

Sick IME18-12NNSZC0S M18 10-30V DC 12mm Detection NPN NO Inductive Proximity Sensor
Part Code: 1040990
Stock Code: 2891-2651
Sick IME18-12NNSZC0S M18 10-30V DC 12mm Detection NPN NO Inductive Proximity Sensor
Part Code: 1040990
Stock Code: 2891-2651
Features
- M18 Thread size
- 12mm Sensing range
- Non-flush installation
- 3 Wire M12 male connector 4 pin
- Thread length: 42mm / housing length: 69mm
- 10-30V DC supply voltage
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Compliance
- UKCA, CE
- Connector Type
- M12 Straight
- Contact Configuration
- NO
- Dimensions
- (L)69 mm
- Guarantee
- 1 Year
- IP Rating
- IP67
- Length
- 69mm
- Material
- Nickel Plated Brass, Plastic
- Number of Pins
- 4
- Output
- NPN
- Packaging Types
- Each
- Product Range
- Inductive Proximity Sensors
- Sensing Distance
- 12mm
- Sensor Type
- Inductive Proximity
- Shape
- Barrel
- Standards
- EN 60947-5-2
- Thread
- M18
- Unspsc V18
- 39122230
- Unspsc V24
- 39122230
- Voltage Range
- 10 - 30V DC
- Weight
- 0.06000kg
