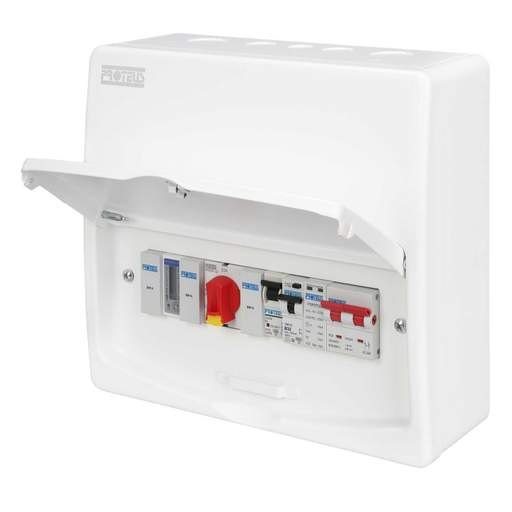

Proteus 100A PV Consumer Unit, 45A Meter, 32A Rotary Isolator, 32A RCBO and Type 2 SPD
Part Code: PMXPV/32
Stock Code: 2892-9298
Proteus 100A PV Consumer Unit, 45A Meter, 32A Rotary Isolator, 32A RCBO and Type 2 SPD
Part Code: PMXPV/32
Stock Code: 2892-9298
Features
- For use with Photovoltaic [PV] equipment
- 100A Patented dual screw isolator
- 45A Bidirectional Generation Meter
- 32A B Curve RCBO & 6A MCB
- 32A Rotary Isolator [with lockable function]
- Type 2 Surge Protection Device [SPD] fitted
- Non-combustible enclosure
- Matt white RAL 9016 finish
- Flush fitting door & curved cover
- Removable door via spring loaded hinge
- Pre fitted blank in remaining ways
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Proteus
- Cable Entry
- Selection of Knockouts
- Current Rating
- 100A
- Depth
- 113mm
- Dimensions
- (H)260 mm x (W)322 mm x (D)113 mm
- Door Type
- Top Hinged
- Guarantee
- 10 Years
- Height
- 260mm
- Incoming Device
- 100A DP Dual Screw Isolator
- Incoming Terminal Capacity
- 35mm²
- Knockouts
- Round
- Material
- Steel
- Mounting
- Surface
- Number of Modules
- 10
- Number of Outgoing Ways
- Pre-populated
- Packaging Types
- Each
- Standards
- BS EN 61439 1&3
- Supplied With
- 100A Isolator, 32A RCBO, 45A kWh Meter, 6A MCB, 32A Rotary Isolator, Blank Module & Cable Entry Plate
- Surge Protection Fitted
- Yes
- Unspsc V18
- 39121110
- Voltage Rating
- 230V 400V
- Width
- 322mm
