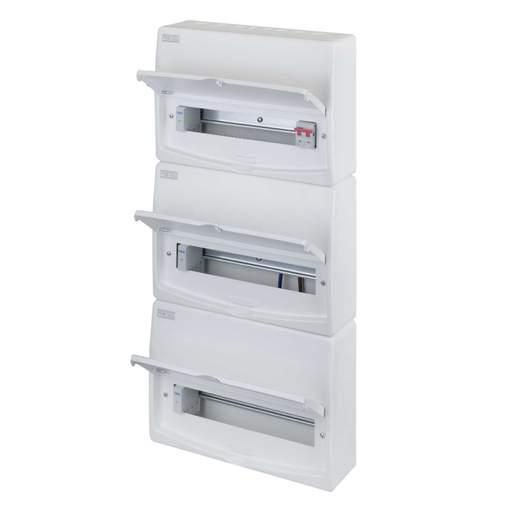

Proteus 47 Way Triple Row 100A Isolator Incomer Metal Clad Consumer Unit
Part Code: PMX47TB
Stock Code: 2895-2533
Proteus 47 Way Triple Row 100A Isolator Incomer Metal Clad Consumer Unit
Part Code: PMX47TB
Stock Code: 2895-2533
Features
- Patented 100A DP dual screw isolator
- Triple bank [15/16/16]
- Accepts 6kA & 10kA MCBs and RCBOs
- Non-combustible enclosure
- Matt white RAL 9016 finish
- Flush fitting door & curved cover
- Removable door via spring loaded hinge
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Proteus
- Cable Entry
- Selection of Knockouts
- Current Rating
- 100A
- Depth
- 113mm
- Dimensions
- (H)780 mm x (W)392 mm x (D)113 mm
- Door Type
- Steel cover c/w letterbox lid
- Guarantee
- 10 Years
- Height
- 780mm
- IP Rating
- IP4XC
- Incoming Device
- 100A DP Dual Screw Isolator
- Incoming Terminal Capacity
- 35mm²
- Knockouts
- Round
- Material
- Steel
- Mounting
- Surface
- Number of Modules
- 51
- Number of Outgoing Ways
- 15 + 16 +16
- Packaging Types
- Each
- Previously Known As
- PMX49TB
- Product Range
- Triple Bank
- Standards
- BS EN 61439 1&3
- Supplied With
- 1 x Cable Entry Plate
- Surge Protection Fitted
- No
- Unspsc V18
- 39121110
- Unspsc V24
- 39121110
- Voltage Rating
- 230V
- Weight
- 10.90000kg
- Width
- 392mm
