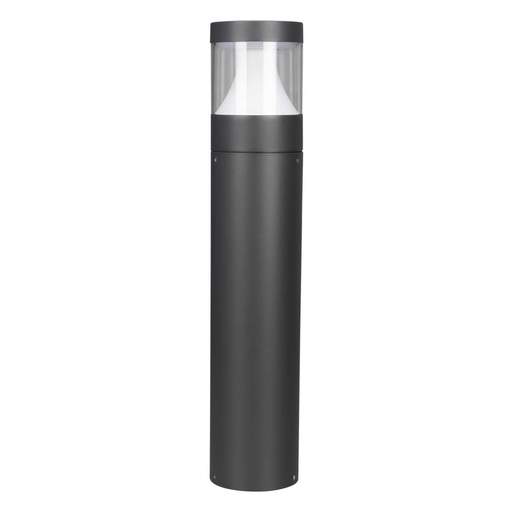

Xcite 12W - 20W 500mm LED Wattage Selectable CCT Cone Bollard
Part Code: XCBOLX1SGC
Stock Code: 2896-5853
Xcite 12W - 20W 500mm LED Wattage Selectable CCT Cone Bollard
Part Code: XCBOLX1SGC
Stock Code: 2896-5853
Features
- Ideal for pathways, walkways, car parks and perimeter lighting
- CCT adjustable via 3-way selector switch [3000K/4000K/5000K]
- Wattage adjustable via 2-way dip switch [12W/16W/20W]
- Up to 103 lumens per watt efficacy
- Loop in/out mains connector
- Die-cast aluminium construction designed to resist corrosion and prevent rust

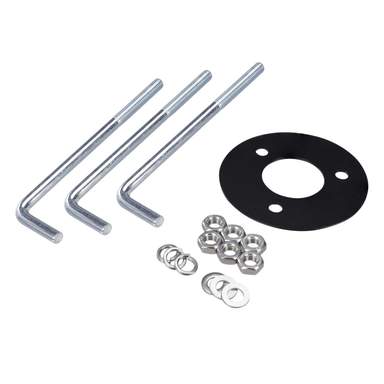

- Ground Mounting J-BOLT KIT [sold separately]
- Weatherproof IP65 construction
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Class Type
- Class 1
- Colour
- Grey
- Colour Rendering Index(Cri)
- 80
- Colour Temperature
- Selectable - 3000/4000/5000 K
- Compliance
- UKCA, CE
- Diameter
- 120mm
- Dimensions
- (Dia)120 mm x (H)600 mm
- Efficacy Rating
- 103
- Energy Saving
- Yes
- Finish
- Grey
- Guarantee
- 5 Years
- Height
- 600mm
- IP Rating
- IP65
- Ik Rating
- IK10
- Lamp Type
- Integrated LED
- Lumens Output
- 1100lm 1800lm
- Material
- Die-Cast Aluminium
- Mounting
- Ground
- Packaging Types
- Each
- Power Rating
- 12W 16W 20W
- Product Range
- Bollard
- Sensor
- No
- Type
- Bollard
- Unspsc V18
- 39111605
- Unspsc V24
- 39111605
- Voltage Rating
- 230V
