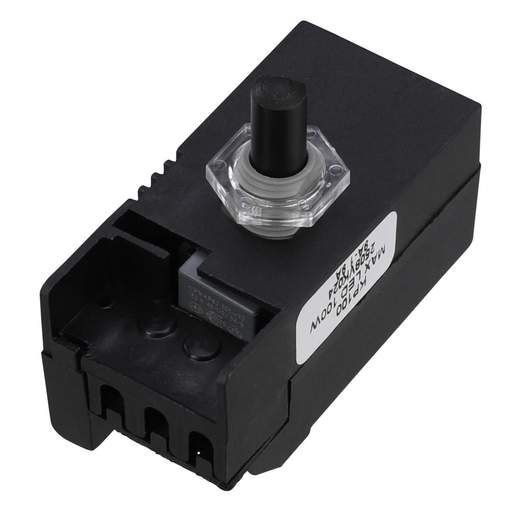

Varilight 2 Way 100W Push On / Off LED Replacement Dimmer Module
Part Code: MKP100
Stock Code: 2897-8324
Varilight 2 Way 100W Push On / Off LED Replacement Dimmer Module
Part Code: MKP100
Stock Code: 2897-8324
Features
- Can be used to replace dimmer modules in existing faceplates or in the Matrix dimmer grid system
- V-Com intelligent TRIAC leading edge dimming technology
- Soft start feature and intelligent overload protection
- Adjustable minimum brightness setting and choice of driving modes to optimise the dimming performance of a given LED lighting load
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Varilight
- Colour
- Black
- Compliance
- UKCA, CE
- Current Rating
- 0.4A
- Depth
- 42mm
- Dimensions
- (H)52 mm x (W)26 mm x (D)42 mm
- Finish
- Black
- Guarantee
- Lifetime
- Height
- 52mm
- Lamp Type
- LED GLS Halogen
- Mounting
- Modular
- Mounting Depth
- 35mm
- Number of Gangs
- 1
- Number of Modules
- 1
- Number of Terminals
- 3
- Number of Ways
- 2
- Operating Load
- 0 - 100W
- Operation Type
- Push On / Off
- Packaging Types
- Each
- Power Rating
- 100W
- Product Range
- V-Com
- Standards
- BS EN 60669-2-1
- Terminal Capacity Live Neutral
- 3 x 1.5mm²
- Unspsc V18
- 39122206
- Unspsc V24
- 39122206
- Voltage Rating
- 230V
- Weight
- 0.05000kg
- Width
- 26mm
