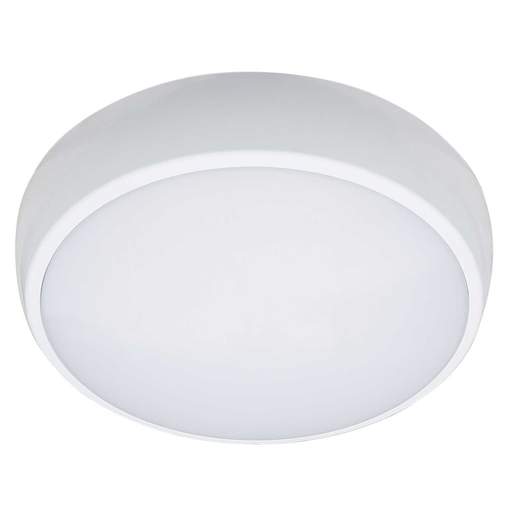

Fusion DOME II 8W - 20W LED Tri-Colour Emergency Bulkhead White
Part Code: FDOMECCWE3
Stock Code: 2897-8342
Fusion DOME II 8W - 20W LED Tri-Colour Emergency Bulkhead White
Part Code: FDOMECCWE3
Stock Code: 2897-8342
Features
- Wattage selectable [8W / 12W / 16W / 20W]
- CCT selectable [3000K / 4000K / 6500K]
- Maintained emergency [3hr/180mins]
- Plug-and-play component arrangement for ease of maintenance
- Hinged LED gear tray with locking catch
- Up to 2100 lumens output
- Push-fit [loop-in/loop-out] terminal block
- Side and rear 20mm cable entry points
- Plastic body and polycarbonate diffuser
- Twist and lock diffuser and white clip-on bezel supplied
- Optional chrome and brass bezels available separately
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Fusion
- Beam Angle
- 115°
- Class Type
- Class 2
- Colour
- White
- Colour Rendering Index(Cri)
- 80
- Colour Temperature
- Selectable - 3000/4000/6500 K
- Compliance
- UKCA, CE
- Depth
- 77mm
- Diameter
- 320mm
- Dimensions
- (Dia)320 mm x (D)77 mm
- Dimmable
- No
- Emergency
- Yes
- Emergency Duration
- 3 Hours
- Emergency Type
- Maintained
- Energy Saving
- Yes
- Finish
- White
- Guarantee
- 2 Years
- IP Rating
- IP65
- Ik Rating
- IK08
- Lamp Life
- 50000h
- Lamp Type
- Integrated LED
- Lens Colour
- Opal
- Lumens Output
- 2100lm
- Material
- Polycarbonate
- Mounting
- Surface
- Operating Temperature Range
- 0 - +40°C
- Packaging Types
- Box
- Power Rating
- 8W 12W 16W 20W
- Product Range
- Dome II
- Sensor
- No
- Standards
- EN60598-1 / EN60598-2-1
- Supplied With
- White Bezel
- Unspsc V18
- 39111709
- Unspsc V24
- 39111709
- Video Url
- https://www.youtube.com/embed/WBA1KhIkILs https://www.youtube.com/embed/hnVDPnS1VQg
- Voltage Rating
- 230V
- Weight
- 0.99500kg
