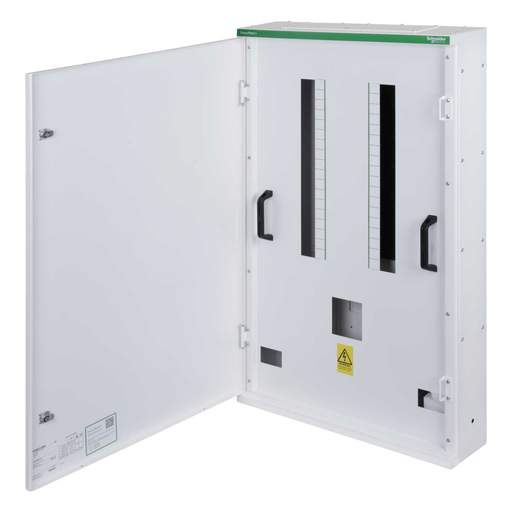

Schneider Merlin Powerpact4 ComPact NSXm 12 Way 250A TP+N MCCB Style B Panelboard without Incomer
Part Code: PP4NB212SM
Stock Code: 2904-8644
Schneider Merlin Powerpact4 ComPact NSXm 12 Way 250A TP+N MCCB Style B Panelboard without Incomer
Part Code: PP4NB212SM
Stock Code: 2904-8644
Features
- Reduced in size and depth from previous model, making it more space-efficient
- Removable pins on doors enable it to be opened from either side, while handles on the inner panels allow contractors to easily cover and access the distribution system
- Product data is easily accessible with digital QR codes on the inside of the doors, improving maintenance efficiency and usage
- Utilisation of ComPact NSXm allows more outgoing ways without compromising on space
- All boards are bottom entry as standard with the option of rotating and reversal of the door to give top entry
- ** New compact size allows for MCB blank [SEA9BP3] to be used as MCCB blank [sold separately]
- ** Please note FULL BLANKS are NOT available for the ComPact panelboard range
- **Please see the Download below [Schneider PPNB212SM Product Selector] for details on Incomers and Outgoers for this board
- ** Newer versions of the Single Pole MCCB's with prefix PP4BJ1P are compatible with this panelboard
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Schneider Merlin Powerpact4
- Busbar Rating
- 250A
- Current Rating
- 250A
- Depth
- 168mm
- Dimensions
- (H)1065 mm x (W)650 mm x (D)168 mm
- Height
- 1065mm
- IP Rating
- IP2X
- Incoming Device
- Not Supplied
- Material
- Sheet Steel
- Mounting
- Surface
- Number of Outgoing Ways
- 12
- Packaging Types
- Each
- Product Range
- ComPact NSXm PowerPact4
- Standards
- BS EN 61439-2
- Unspsc V18
- 39121103
- Unspsc V24
- 39121103
- Voltage Rating
- 415V
- Weight
- 34.00000kg
- Width
- 650mm
