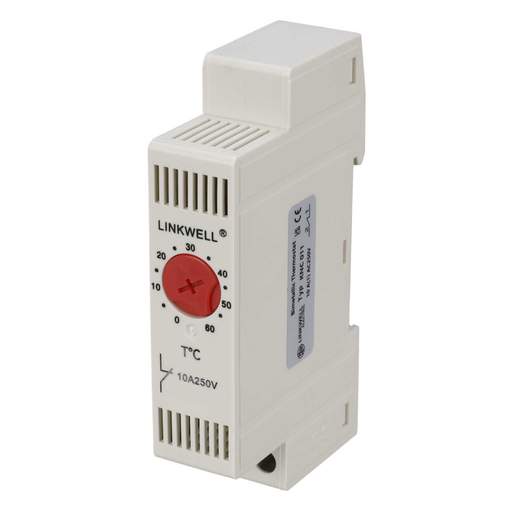

Linkwell Electric 0-60ºC 1NC Panel Thermostat
Part Code: KNC011
Stock Code: 2908-5880
Linkwell Electric 0-60ºC 1NC Panel Thermostat
Part Code: KNC011
Stock Code: 2908-5880
Features
- Improves reliability of control and automation equipment by maintaining a controlled internal environment
- Simple mechanical operation with clear adjustment for quick setup
- Compact design saves space on the DIN rail or panel
- Compatible with Linkwell heaters, fans and other thermal management products
- Contact type: 1NC [opens on temperature rise]
- Setting range approx. 0-60°C adjustable
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- White
- Current Rating
- 10A 20A
- Depth
- 48mm
- Dimensions
- (H)84 mm x (W)17.5 mm x (D)48 mm
- Height
- 84mm
- IP Rating
- IP20
- Material
- Plastic
- Maximum Operating Temperature
- +60°C
- Mounting
- DIN Rail
- Packaging Types
- Each
- Suitable For
- Control panels and distribution boards Drive and VFD cabinets Switchgear and MCCs Automation, process and building services panels
- Unspsc V18
- 40101605
- Unspsc V24
- 40101605
- Video Url
- https://www.youtube.com/embed/65Pp7_k2DoU
- Voltage Rating
- 230V
- Weight
- 0.05000kg
- Width
- 17.5mm
