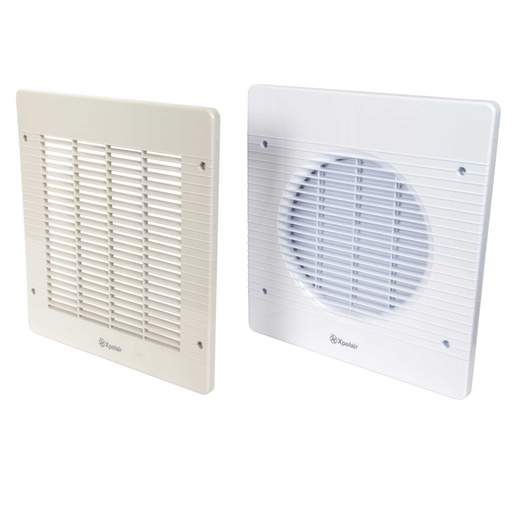

Xpelair WX9 225mm 9" Ultra Slim Commercial Wall Fan
Part Code: 89996AW
Stock Code: 1277-6095
Xpelair WX9 225mm 9" Ultra Slim Commercial Wall Fan
Part Code: 89996AW
Stock Code: 1277-6095
Features
- For safety, a finger-guard is integrated into the ultra slim high gloss ABS fascia
- Styled to blend in cleanly with commercial surroundings, as well as the exterior wall grille
- This fan is reversible and has two speeds
- Features a positive plug and socket assembly that provides a means of isolation
- The totally enclosed external motors provide constant volume outputs, even in external conditions
- Running costs are impressively low
- When not in use the silent electro-thermal shutter cassette closes silently against backdraughts
- Hole size: 345x375mm
- Wall thickness: 275-375mm
- Low speed only applies if fan is used with FR22/30 controller
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Xpelair
- Airflow Cubic Metresper Hour
- 600 / 693 m³/h Extract, 418 / 459 m³/h Intake
- Airflow Litresper Second
- 166 / 192 l/s Extract, 116 / 127 l/s Intake
- Automatic Shutter
- Yes
- Colour
- White
- Decibel Rating
- 47 / 50 dB[A] @ 3 m
- Dimensions
- (H)433 mm x (W)409 mm
- Guarantee
- 2 Years
- Height
- 433mm
- Mounting
- Wall
- Packaging Types
- Each
- Power Rating
- 41W
- Product Range
- Commercial Ventilation
- Size
- 230 mm
- Suitable For
- Pubs, Restaurants, Offices, Kitchens, Factories, Schools and Shops
- Supplied With
- Wall Mounting Kit and Safe Lock Metal Telescopic Wall Liner
- Unspsc V18
- 40101502
- Unspsc V24
- 40101502
- Voltage Rating
- 230V
- Weight
- 5.57000kg
- Width
- 409mm
