Vent Axia TX6WL 150mm 6" Wall Fan
Part Code: W161510
Stock Code: 0017-7703
Vent Axia TX6WL 150mm 6" Wall Fan
Part Code: W161510
Stock Code: 0017-7703
Features
- Extract/intake model in 4 sizes: 6”, 7”, 9” and 12”
- Patented electronic shutter system ensures quiet, trouble free operation

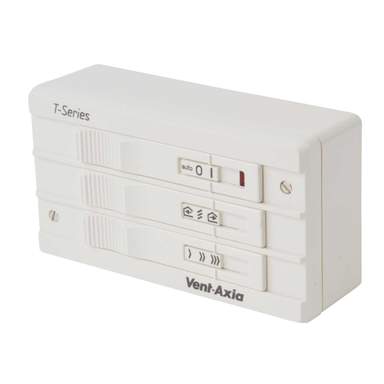

- For the best performance from your fan, use an ecotronic controller [Supplied Separately]
- Easy fit connector top socket, standard on all models
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Airflow Cubic Metresper Hour
- 270 / 350 / 395 m³/h
- Airflow Litresper Second
- 75 / 97 / 110 l/s
- Automatic Shutter
- Yes
- Colour
- Grey
- Current Rating
- 0.24A
- Decibel Rating
- 43 dB[A] @ 3 m
- Depth
- 240mm
- Diameter
- 150mm
- Dimensions
- (Dia)150 mm x (H)303 mm x (W)290 mm x (D)240 mm
- Guarantee
- 2 Years
- Height
- 303mm
- Maximum Operating Temperature
- 50°C
- Mounting
- Wall
- Packaging Types
- Each
- Power Rating
- 40W
- Previously Known As
- W161510B
- Product Range
- Wall Fans
- Size
- 150 mm
- Standards
- BS 848
- Unspsc V18
- 40101502
- Unspsc V24
- 40101502
- Voltage Rating
- 230V
- Weight
- 5.54000kg
- Width
- 290mm
