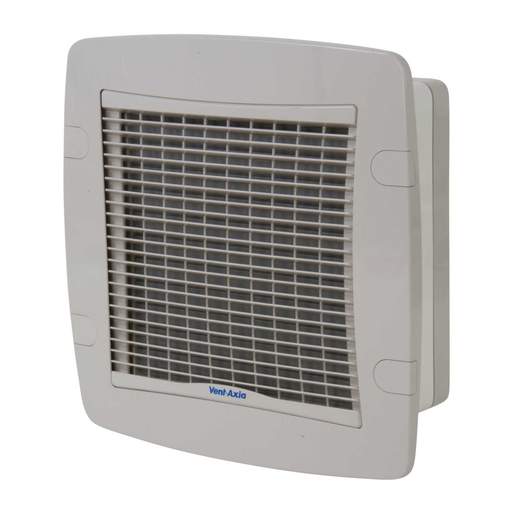

Vent Axia TX9PL 225mm 9" Panel Fan
Part Code: W163610
Stock Code: 0017-7730
Vent Axia TX9PL 225mm 9" Panel Fan
Part Code: W163610
Stock Code: 0017-7730
Features
- Patented electronic shutter system ensures quiet trouble free operation
- For the best performance from your fan, use an ecotronic controller [Supplied Separately]
- Easy fit connector Top Socket, standard on all models
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Airflow Cubic Metresper Hour
- 565 / 830 / 960 m³/h
- Airflow Litresper Second
- 157 / 230 / 267 l/s
- Automatic Shutter
- Yes
- Colour
- Grey
- Decibel Rating
- 43 dB[A] @ 3 m
- Depth
- 168mm
- Dimensions
- (H)388 mm x (W)391 mm x (D)168 mm
- Guarantee
- 2 Years
- Height
- 388mm
- Mounting
- Panel / Ceiling
- Packaging Types
- Each
- Power Rating
- 85W
- Previously Known As
- W163610B
- Size
- 230 mm
- Unspsc V18
- 40101502
- Unspsc V24
- 40101502
- Voltage Rating
- 230V
- Weight
- 1.75000kg
- Width
- 391mm
