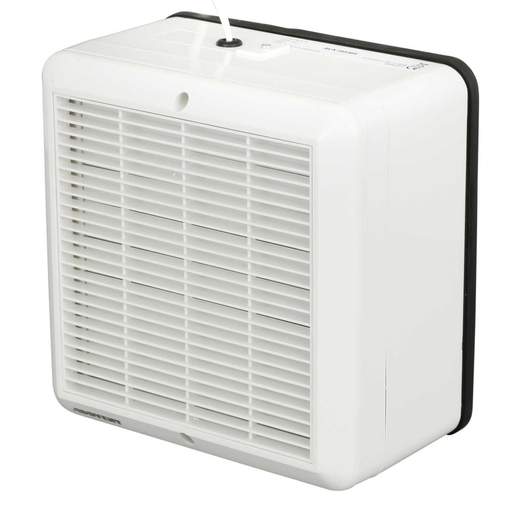

Addvent 150mm 6" Axial Auto Shutter Window Fan
Part Code: AVX150AW
Stock Code: 0018-0784
Addvent 150mm 6" Axial Auto Shutter Window Fan
Part Code: AVX150AW
Stock Code: 0018-0784
Features
- Window mounting through 4mm - 10mm glass
- Quiet and efficient
- 69 litres per sec [248m³/hour]
- Single phase induction motor
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Addvent
- Airflow Cubic Metresper Hour
- 248 m³/h
- Airflow Litresper Second
- 69 l/s
- Automatic Shutter
- Yes
- Colour
- White
- Decibel Rating
- 40 dB[A] @ 3 m
- Depth
- 90mm
- Dimensions
- (H)203 mm x (W)203 mm x (D)90 mm
- Ducting Size
- 150mm
- Fan Speed
- 2400r/min
- Guarantee
- 5 Years
- Height
- 203mm
- Hole Size
- 184mm
- IP Rating
- IP44
- Material
- ABS Thermoplastic
- Maximum Operating Temperature
- 40°C
- Motor Type
- Single phase induction with pre-oiled bearings
- Mounting
- Window
- Operation Type
- Standard
- Packaging Types
- Each
- Power Rating
- 25W
- Product Range
- The 150 Range
- Safety Cut Out
- Thermal Overload Protection
- Suitable For
- Kitchens, Laundry Rooms, Larger Cloakrooms, WC's and Other Light Commercial Applications
- Type
- Axial
- Unspsc V18
- 40101502
- Unspsc V24
- 40101502
- Voltage Rating
- 230V
- Weight
- 1.55000kg
- Width
- 203mm
- Zone Rating
- Zone U
